Folding Movable Partition Wall

  • Panfold Auto Electric Folding Partition Wall System

System Information

Open easily, use easily.

What is it? What are its properties? Where is it used?

The Panfold Auto system provides you with high sound insulation with the guillotine profiles used to seal the gaps on the top and bottom and can be used to close the guillotine profiles easily with its semi-automatic structure. It is especially recommended for places that need sound insulation and frequent use.

The system has been produced in such a way that even children can easily use it in residences and schools. On the other hand, it is possible to use it in all your projects with its competitive cost structure.

confirmation iconFolding Wallconfirmation iconAccordion Systemconfirmation iconSpace Savingconfirmation iconPracticalconfirmation iconImpressive Design

Technical Details

Panfold Auto is a semi-automatic foldable partition system developed for customers who demand comfort and ease of use. The semi-automatic folding wall system has a compact motor that operates at low voltages of 12 or 24 volts. The push-pull action of the motor opens and closes the lower and upper workspaces and the telescopic module on the last panel. You can control the entire system with a switch or remote control.

System Components

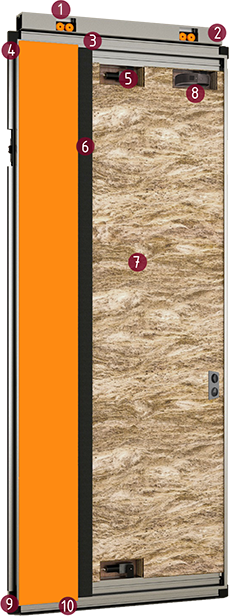

Panfold Auto Panel Components

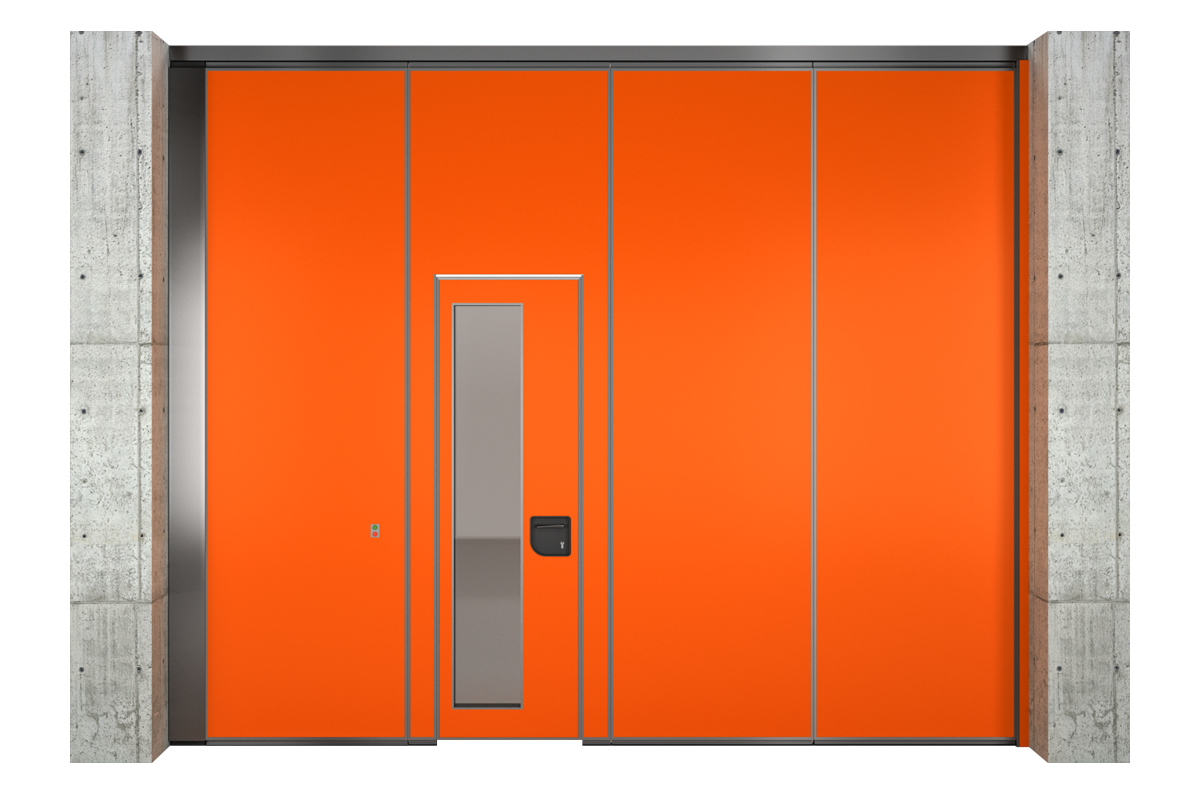

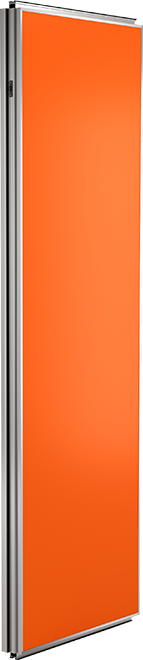

Electric folding movable partition door

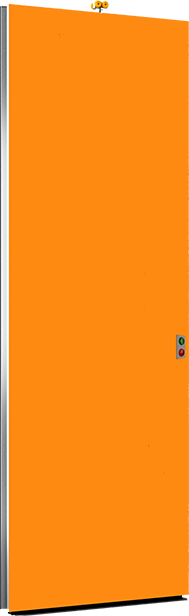

Electric folding movable partition door
1 - reel/roller
2 - Rail
3 - Upper acoustic comfort barrier
4 - Acoustic junction wedge
5 - Automatic guillotine system
6 - 5 mm acoustic barrier
7 - High-density rockwool board
8 - Engine
9 - Lower acoustic comfort barrier
Panfold Auto System sections

Our Panfold Auto movable wall system features profile protection and optional hinge detailing.

Profile System Sections

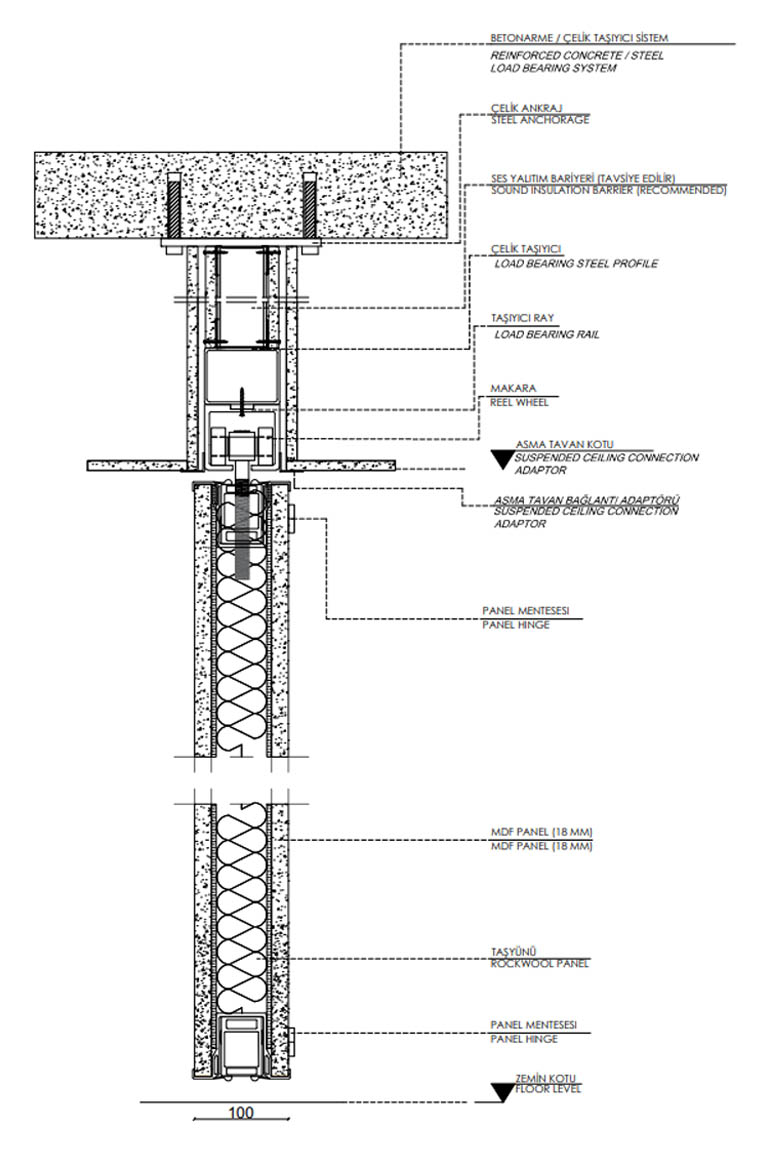

Vertical Section Detail
Panfold auto movable partition wall vertical sections

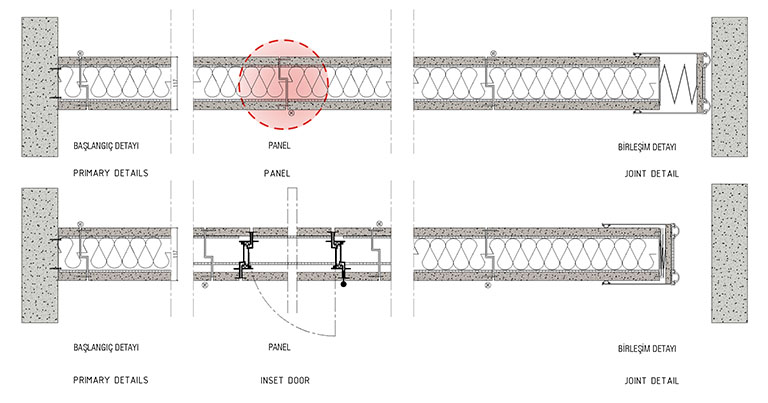

Horizontal Section Detail (plan)
Panfold auto movable partition wall horizontal sections

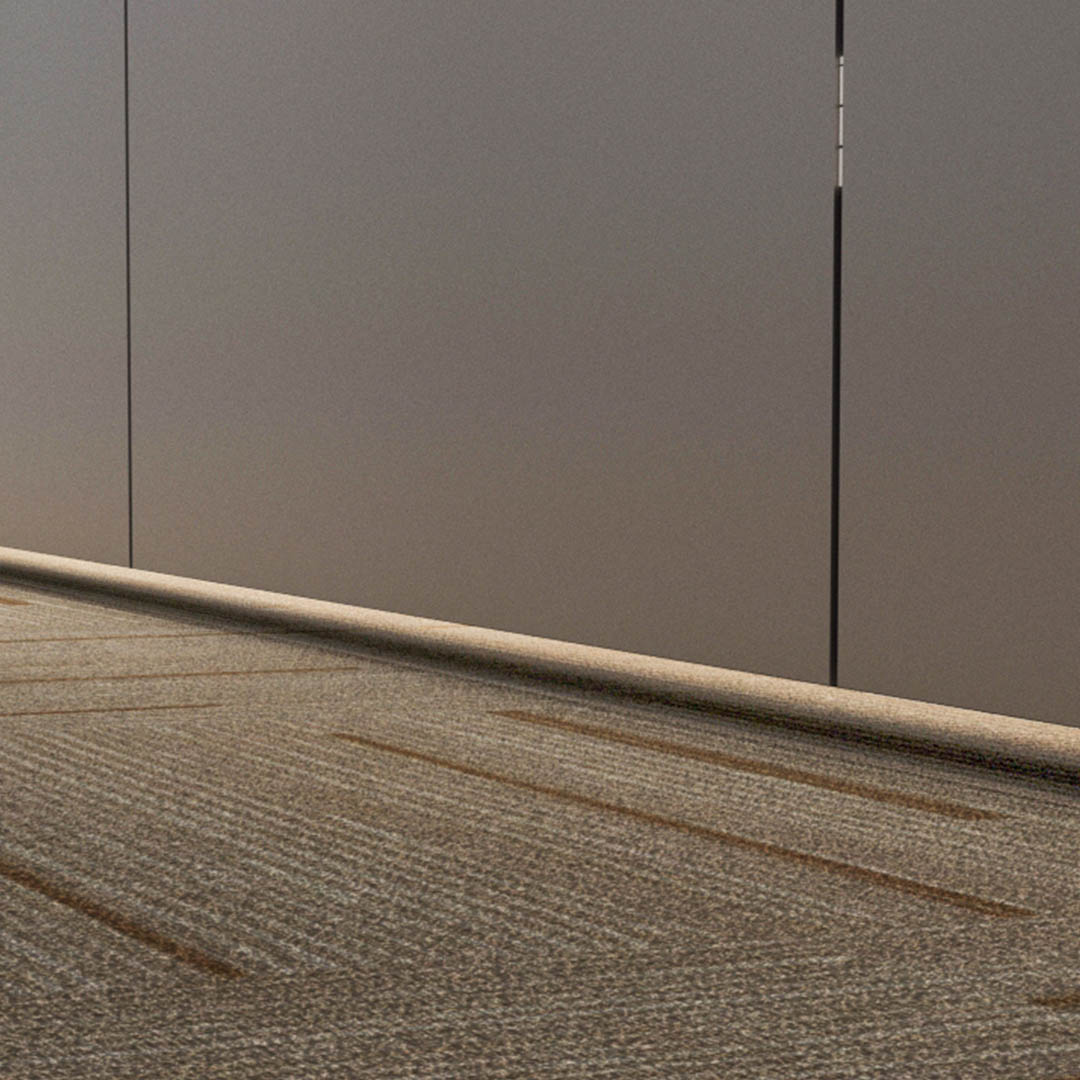

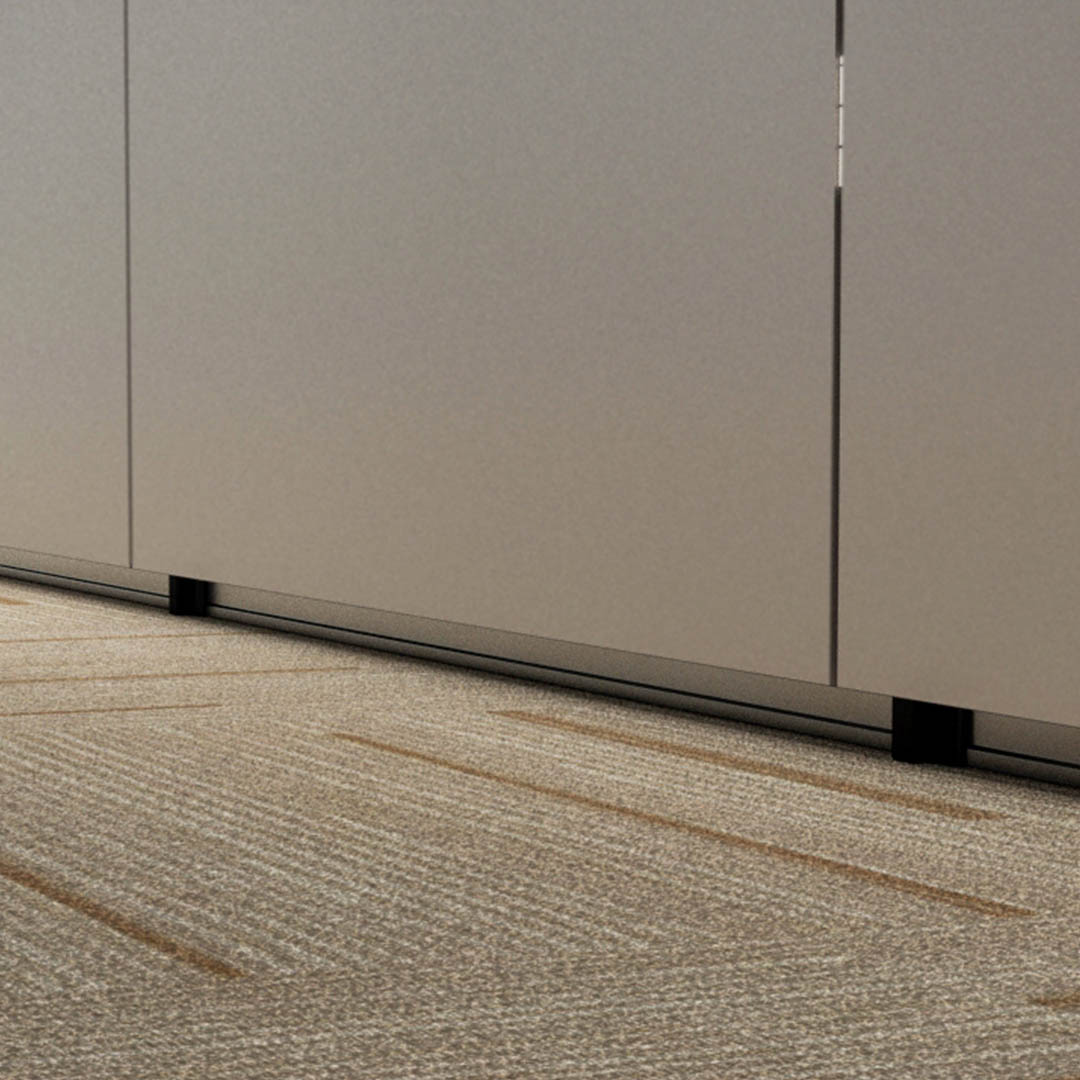

Electric folding movable partition connection

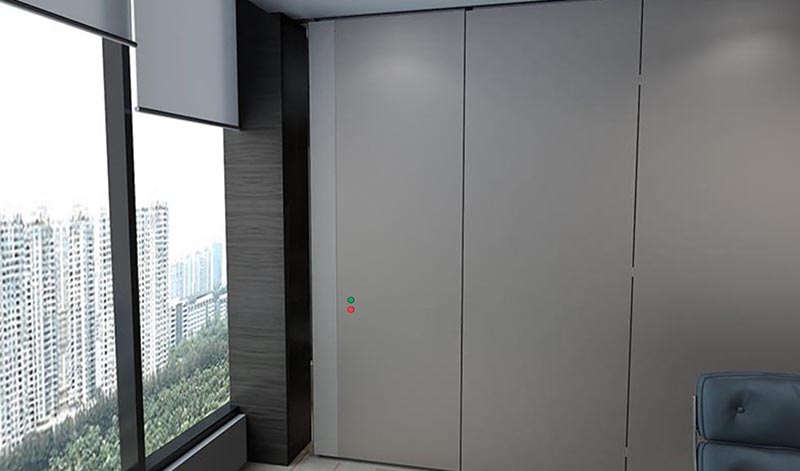

Electric folding movable partition connection
Electric folding movable partition connection
Jointed System Sections

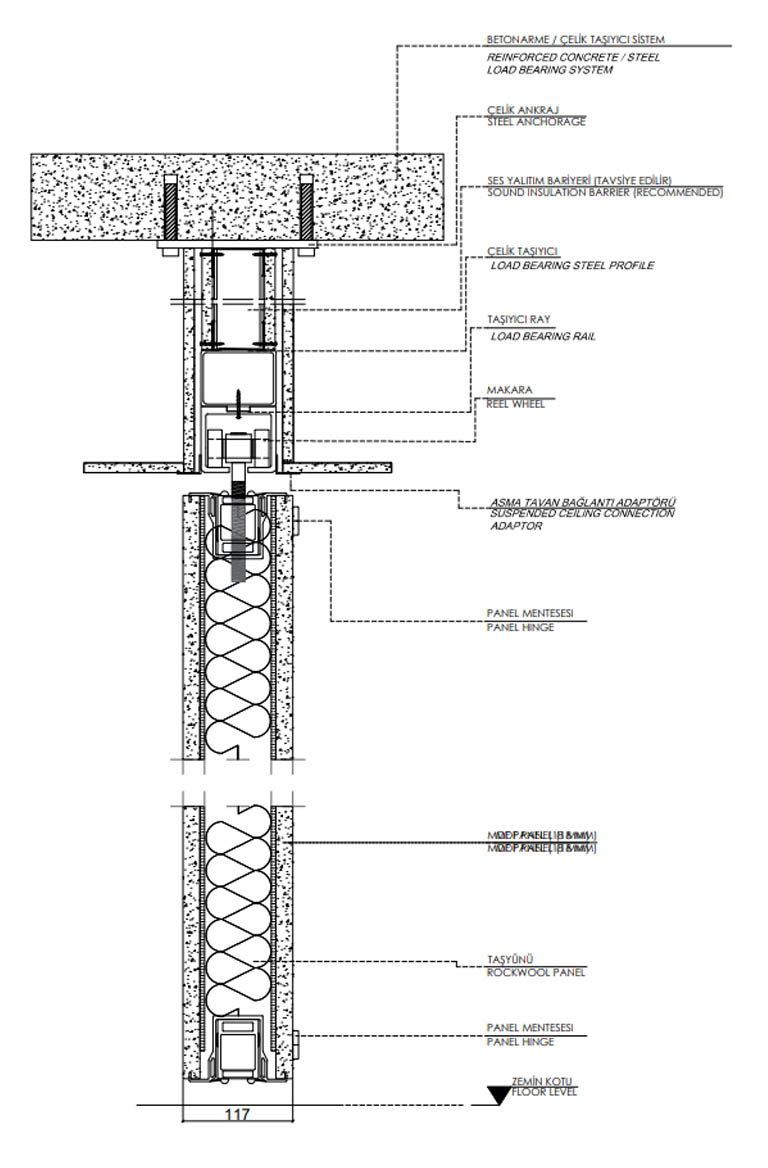

Vertical Section Detail
Panfold auto movable partition wall vertical sections
Horizontal Section Detail (plan)
Panfold auto movable partition wall horizontal sections

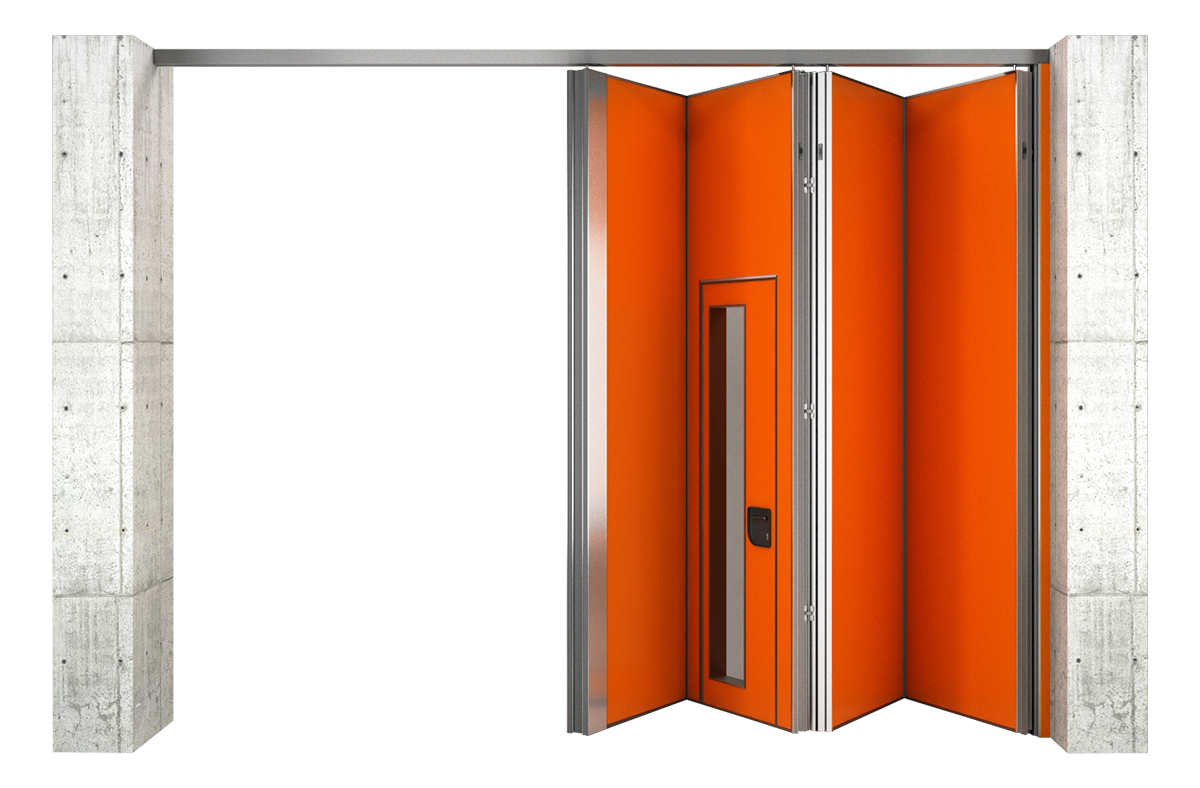

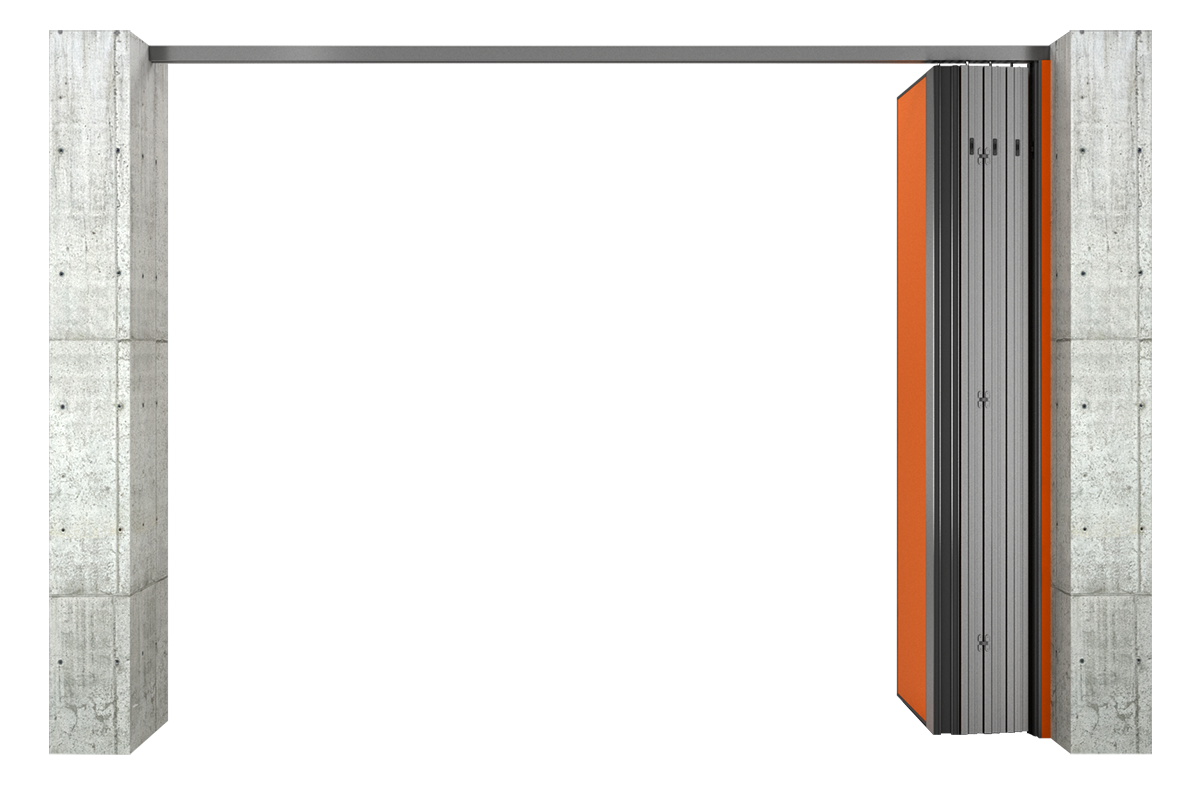

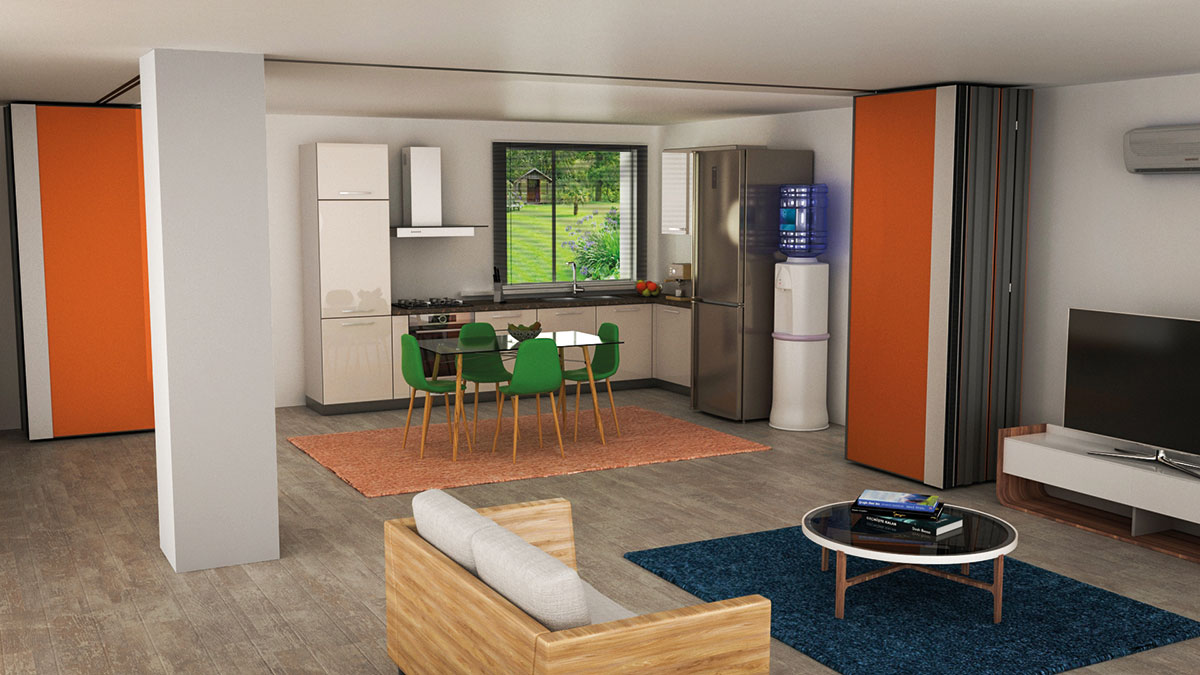

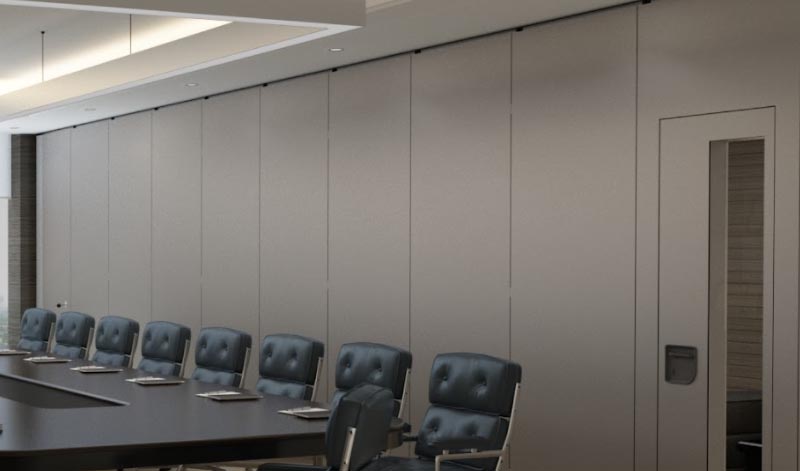

Electric folding movable partition wall folding position

Panfold Auto Acoustic Components

The Panfold Auto folding partition wall system promises the highest acoustic comfort compared to our other folding systems. Advanced sound insulation is provided with rubber wicks integrated into the specially developed vertical and horizontal joint profile. If the other components of the space are compatible, it guarantees sound insulation up to 48 decibels..

Even the standard version of our systems has higher acoustic equipment compared to its counterparts. Depending on the intended use and your request, we provide standard,premium and enhanced sound levels.

Acoustic movable partition wall systems

Acoustic Elements

High Density Rockwool (150 kg/m3): Standard

Soundproofing barrier (3 mm on both insides): Standard

Soundproofing barrier (5 mm on both insides): Optional

Acoustic wood surface (Special perforated or striped): Optional

Acoustic fabric surface (with acoustic sponge): Optional

Vertical sound insulation barrier (Guillotine): Standard

Horizontal concave convex aluminum caps: Standard

Horizontal concave and convex insulation cords: Standard

Sound insulation level: 35 dB and 48 dB

Specifications Table

Panfold Auto semi-automatic folding partition wall system operates with 24 or 12 volt electrical energy. The lower and upper working spaces are closed and opened with guillotine profiles that move with automatically running motors and provide high sound insulation. In-panel doors can be integrated into the Panfold Auto semi-automatic folding partition system, the system is finally fixed with the automatically operating Telescopic Panel module and becomes a wall.

It is especially recommended for places that need sound insulation and frequent use. The system is produced in a way that even children can easily use it in residences and schools. On the other hand, it is possible to use it in all your projects with its competitive cost structure.

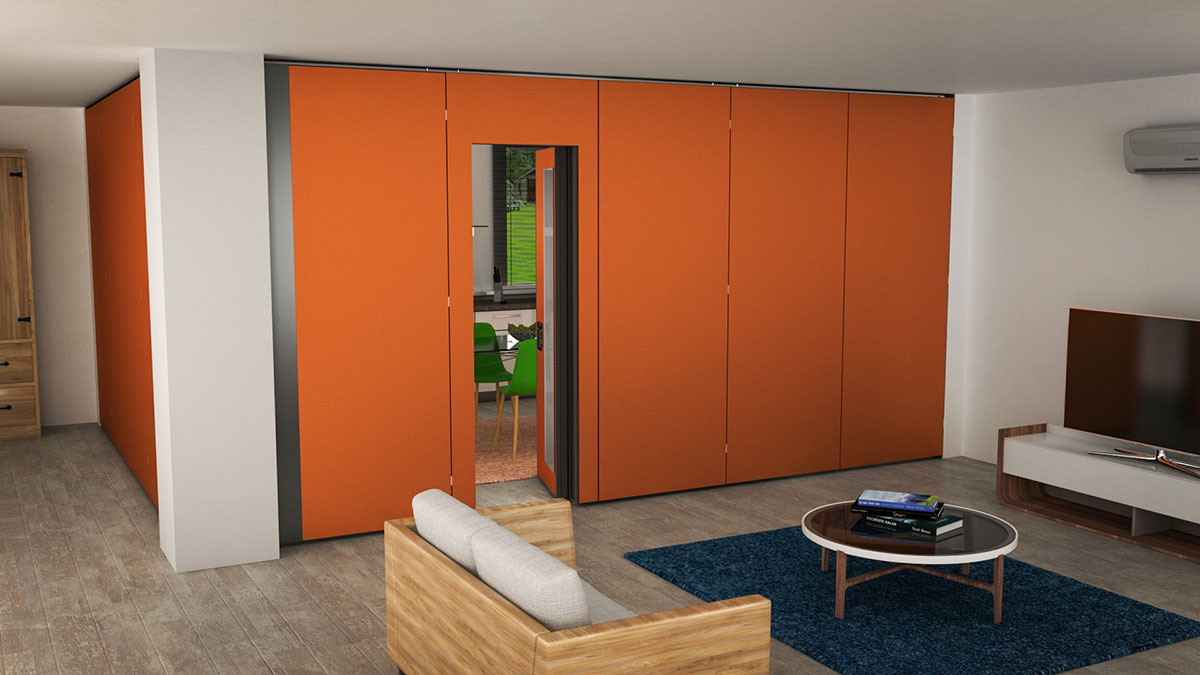

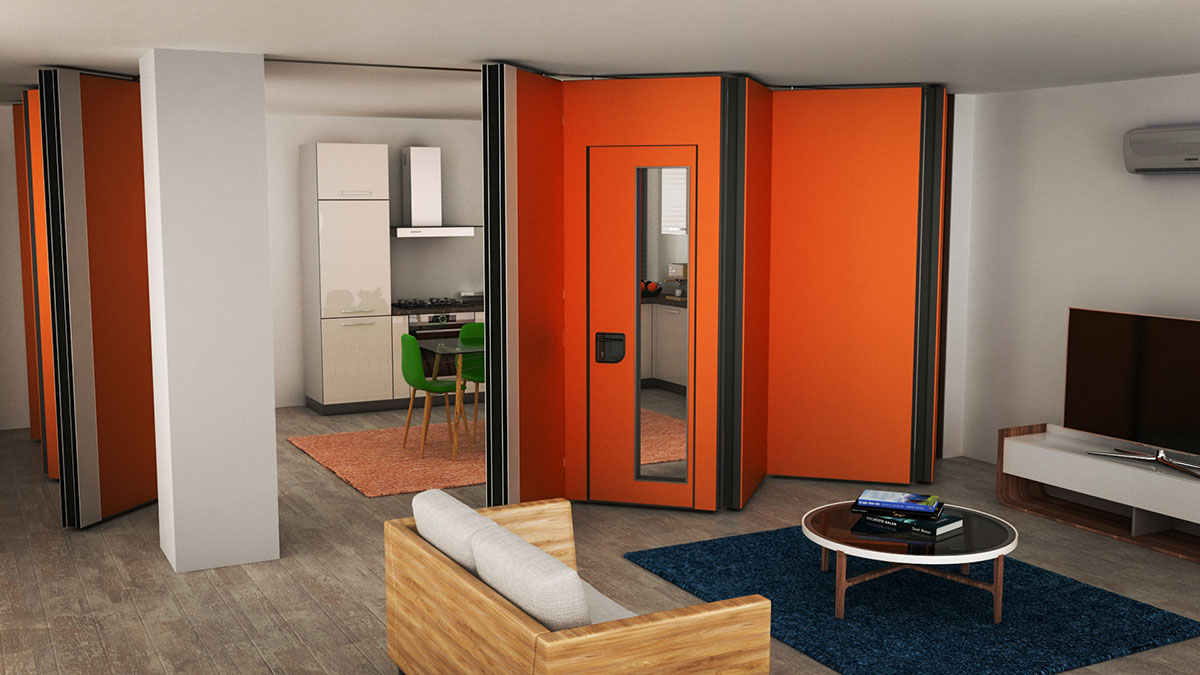

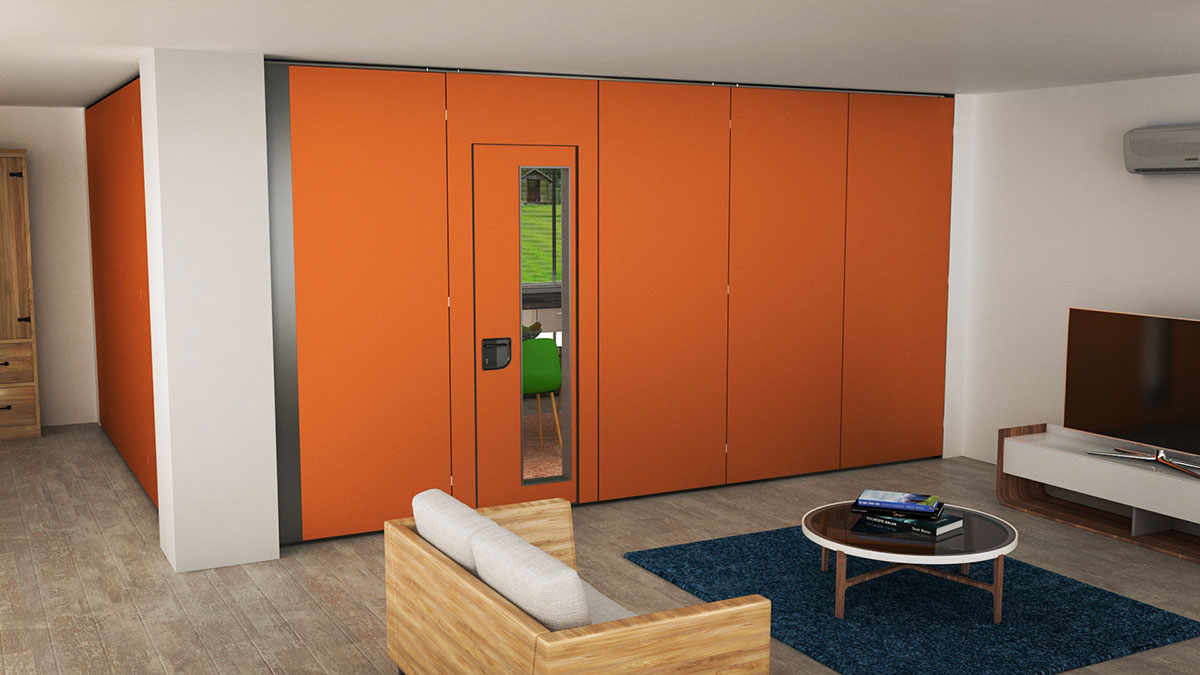

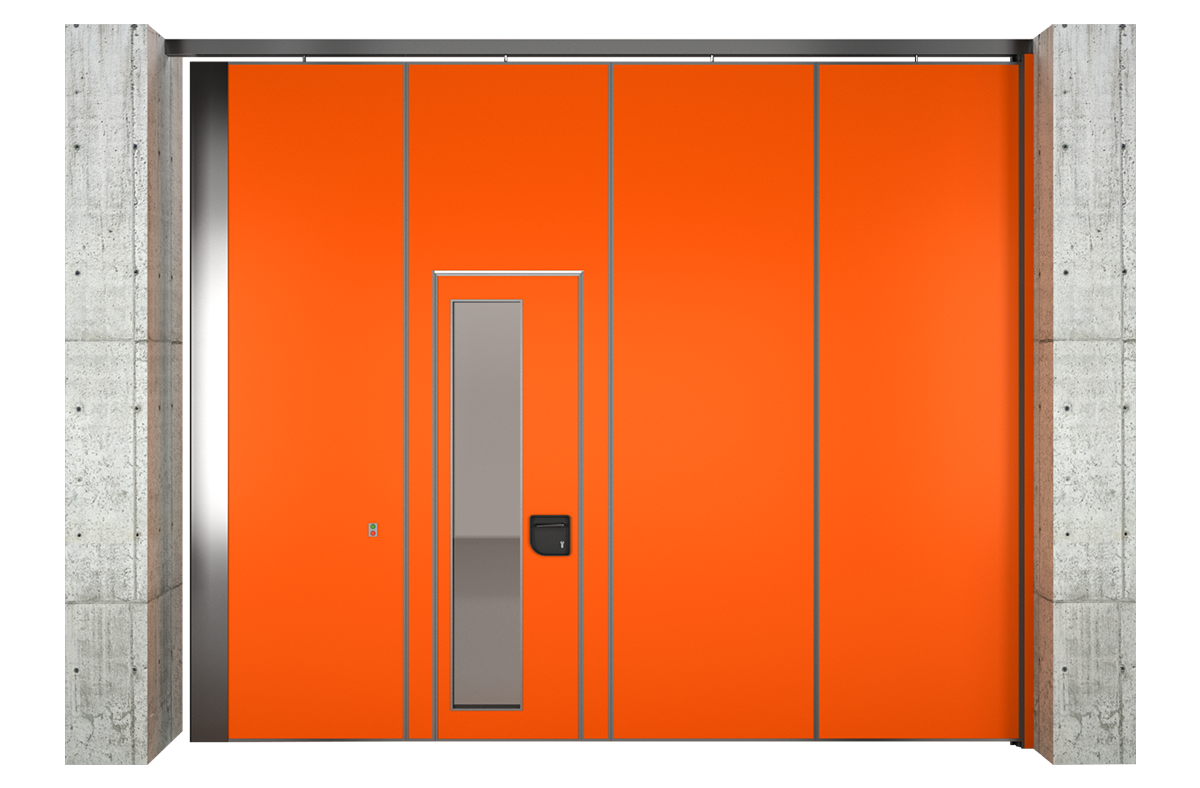

Electric folding movable partition door

Technical Tools

You can download the technical design tools, plan, elevations and system sections of the Panfold Auto semi-automatic folding partition wall system in CAD and PDF formats and use them easily in your projects.

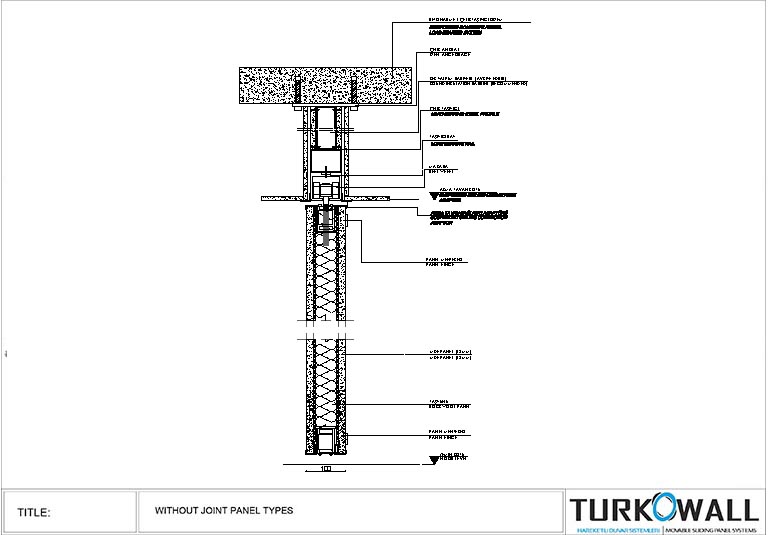

Panfold semi-automatic folding wall system vertical section
System Vertical Sections
dwg iconu
pdf iconu
Panfold yarı katlanır duvar sistem yatay kesiti

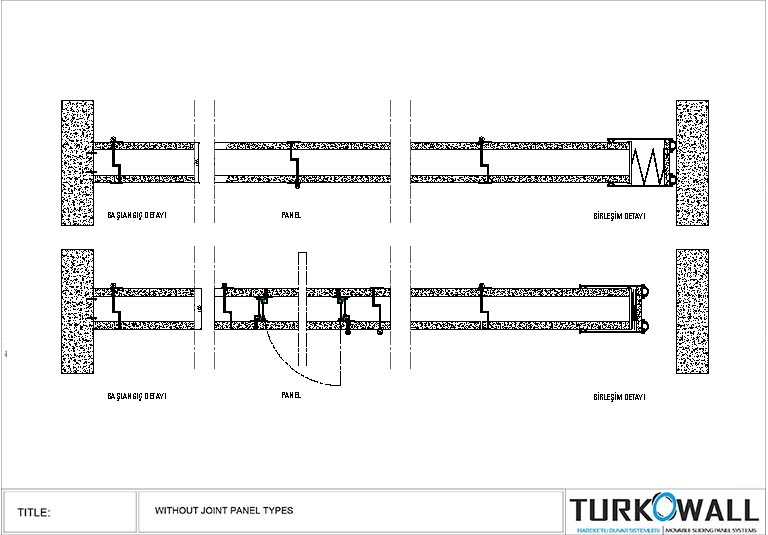

System Horizontal Sections (plan)
dwg iconu
pdf iconu

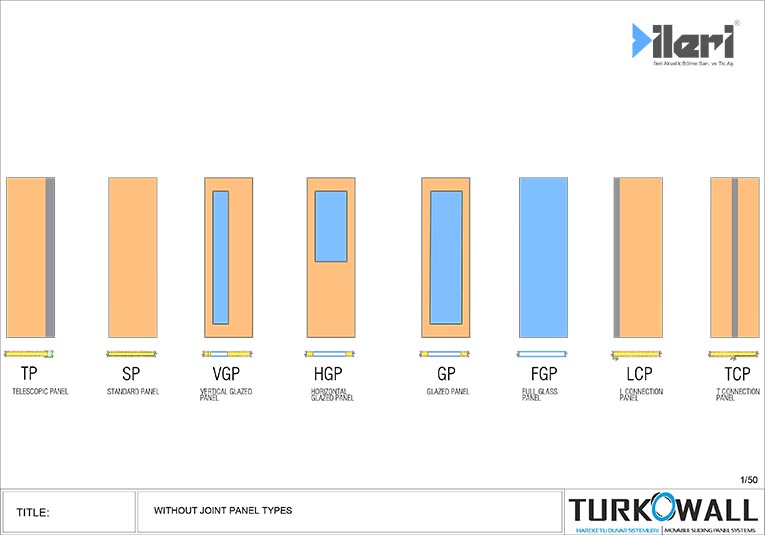

Turkowall movable partition panel types
Panel Types
dwg iconu
pdf ikonu

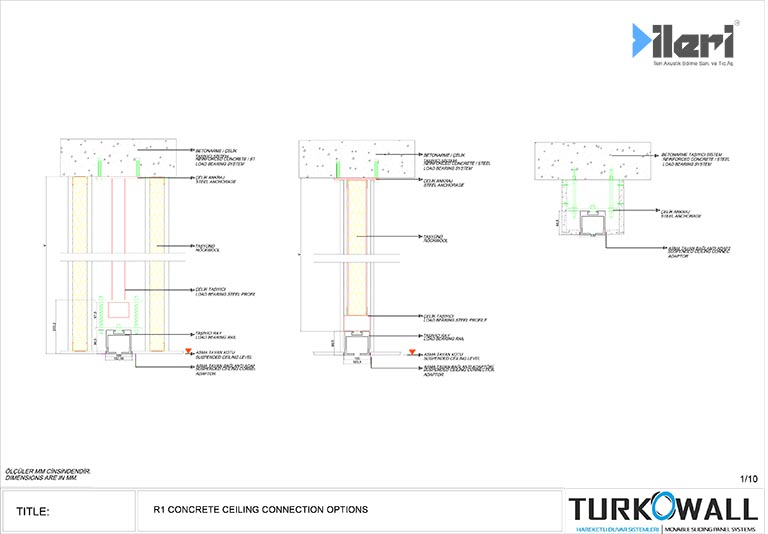

Movable partition wall ceiling carrier system details
Ceiling Connection Details
dwg iconu
pdf iconu
Movable wall systems in-ceiling advanced acoustic insulation details
Acoustic insulation details
dwg iconu
pdf iconu

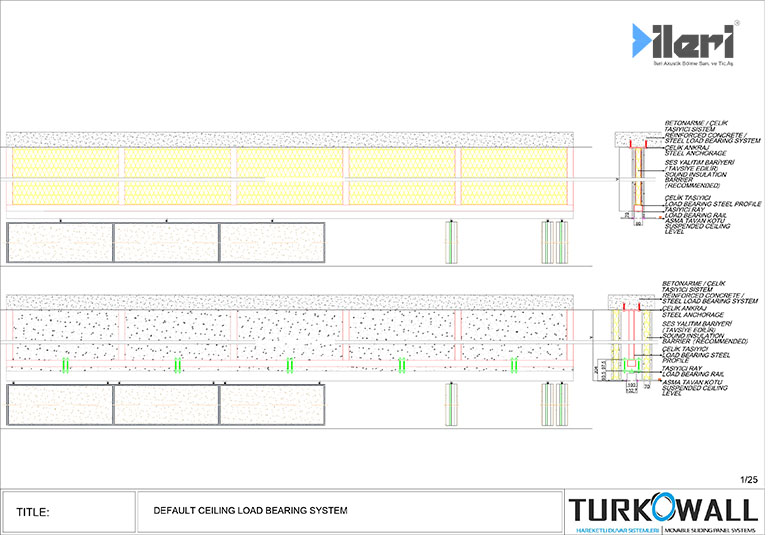

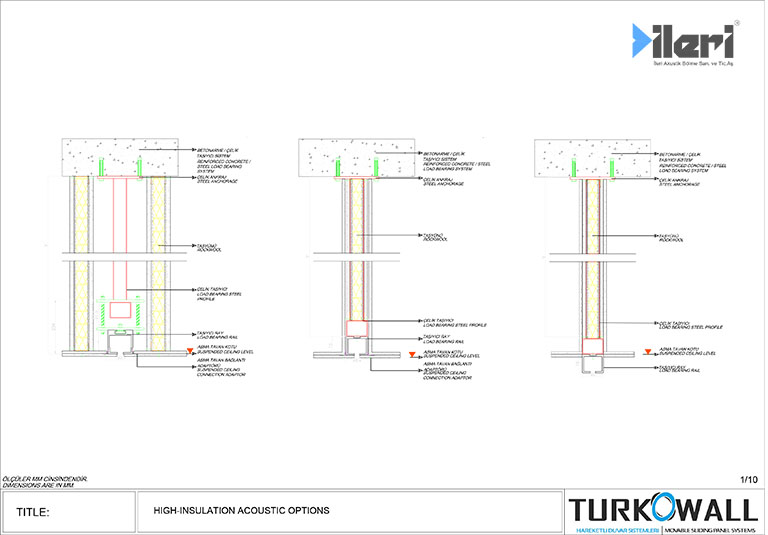

Movable wall systems in-ceiling carrier construction options
High Acoustic Insulation Details
dwg iconu
pdf iconu

Technical specifications

Panfold Auto is a semi automatic foldable partition system developed for customers who demand comfort and ease of use. The semi-automatic folding wall system has a compact motor that operates at low voltages of 12 or 24 volts. The push-pull action of the motor opens and closes the lower and upper workspaces and the telescopic module on the last panel. You can control the entire system with a switch or remote control.

Projects

Panfold Auto: Our Electric Folding Partition Wall system provides both comfort and superior sound insulation in small spaces.
