Wooden Sliding Wall

  • Panslide Wood Manual Wooden Sliding Wall System

Panslide Wood Manual Wooden Sliding Wall System brand logo
System Information
Technical Details
Acoustic Components
Technical Tools
Technical Specifications
Projects
Frequently Asked

System Information

Open easily, use easily.

What is it? What are its Properties? Where is it used?

Panslide Wood is a sliding movable wall system that combines the warmth and natural appeal of wooden surfaces with Turkowall’s innovative flexible space concept. Compared to other systems, Panslide Wood is remarkably lightweight, ensuring ease of use. The wooden panels can be manufactured in thicknesses ranging from 40 to 70 mm, depending on the system’s height. These panels are suspended horizontally by rollers on an aluminum rail located in the ceiling. Unlike some of our other systems, Panslide Wood panels do not have insulation guillotines. However, the wooden modules pull or push each other through specially designed mechanisms and telescopic guides.

When all panels come together side by side, they form a solid wall. Our sliding wall system allows you to create two distinct areas within the same space. Thanks to the telescopic guides that securely join the wooden panels together, creating a corner junction is extremely easy, allowing you to easily form an L-shaped secondary space. For transitions between spaces, the first or last panel can be configured to open or close. When needed, the system can be fully opened, and the wooden panels can be stacked unidirectionally or bidirectionally.

Panslide Wood is recommended for spaces where exceptional sound insulation is not required. It can be custom-manufactured to desired dimensions. Additionally, decorative applications can be applied to the wooden panel surface, integrating it seamlessly with the interior design. Digital patterns and logos can be CNC-applied, and panels can be covered with wallpaper or finished with lacquer paint.

confirmation iconSliding Wallconfirmation iconSpace Savingconfirmation iconPracticalconfirmation iconImpressive Design

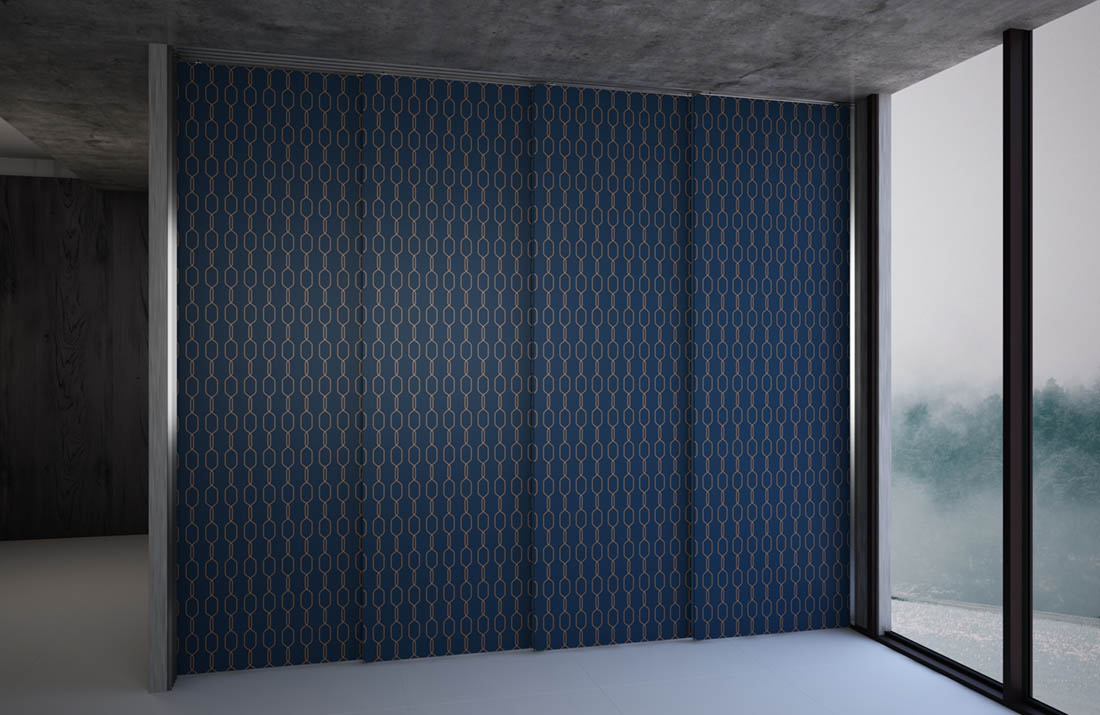

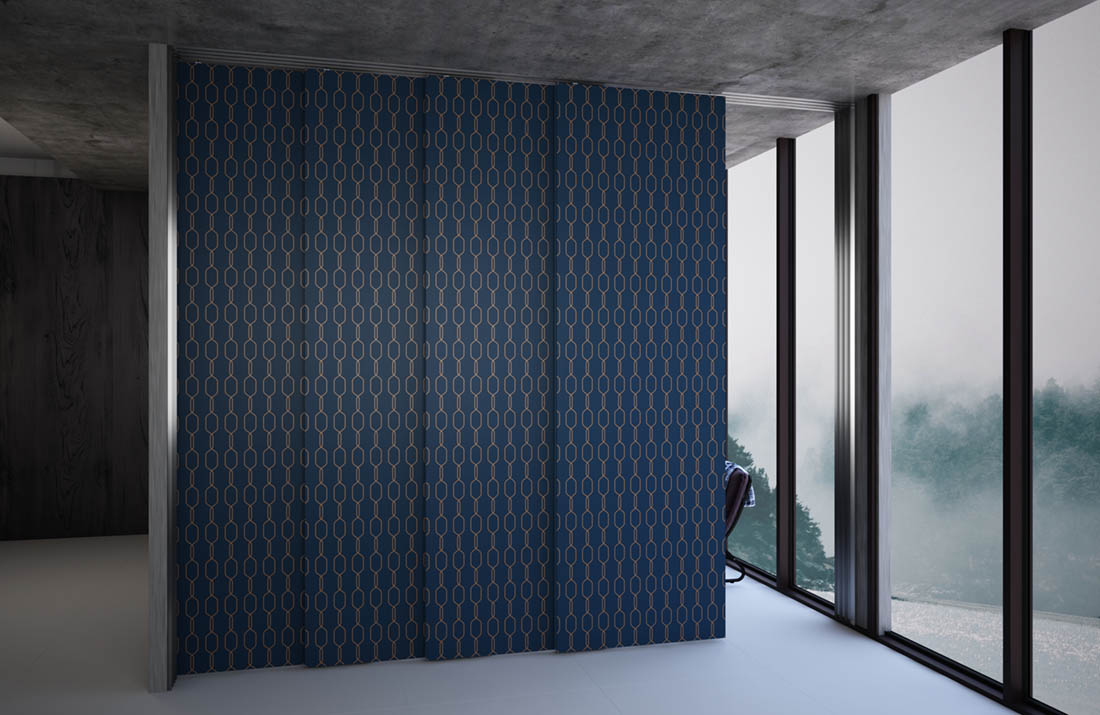

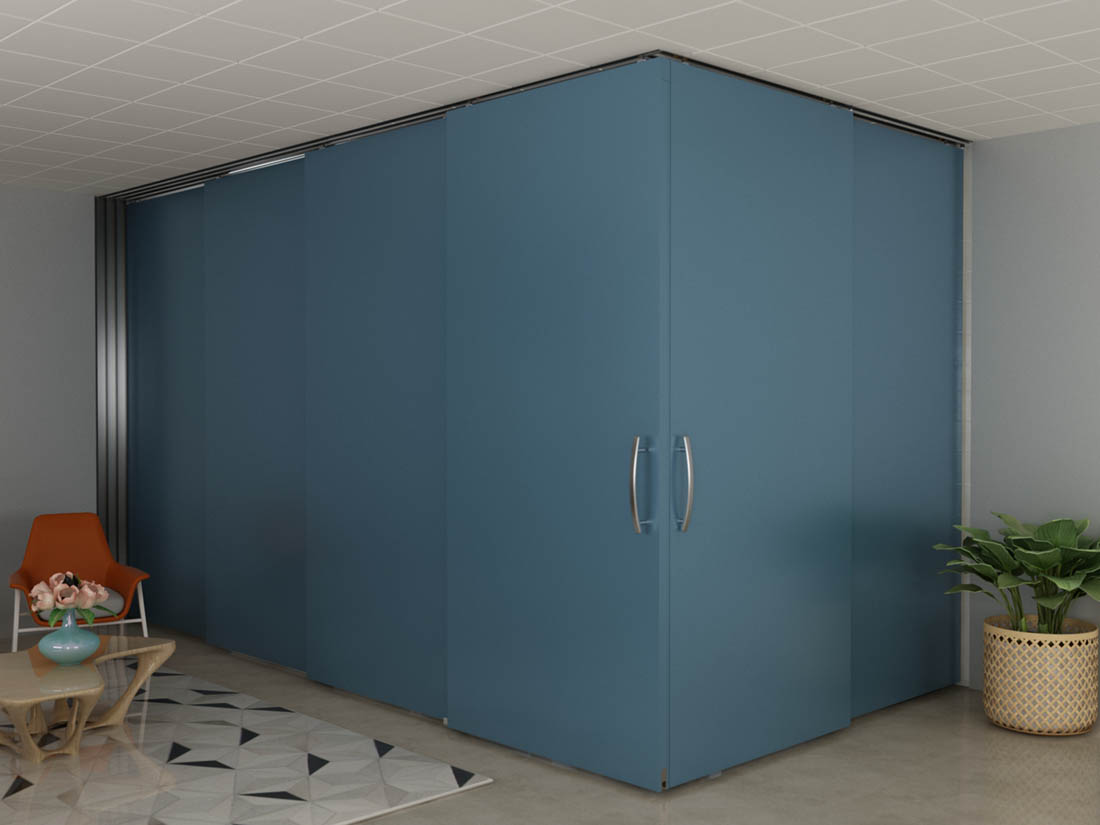

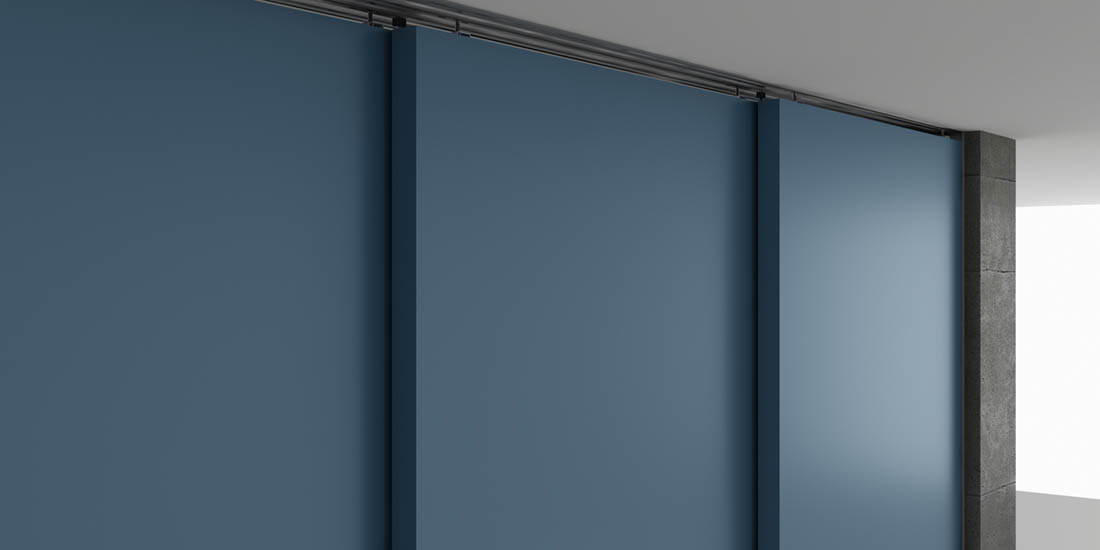

Panslide wood sliding partition wall system
Panslide wood sliding partition wall system
Panslide wood sliding partition wall system
Panslide wood sliding partition wall system

Technical Details

point icon Panslide Wood stands out for its lightweight structure and user-friendly design.

point icon The wooden panels that form the partition wall system can be produced in thicknesses of 40/50/60/70 mm, considering the system’s overall height.

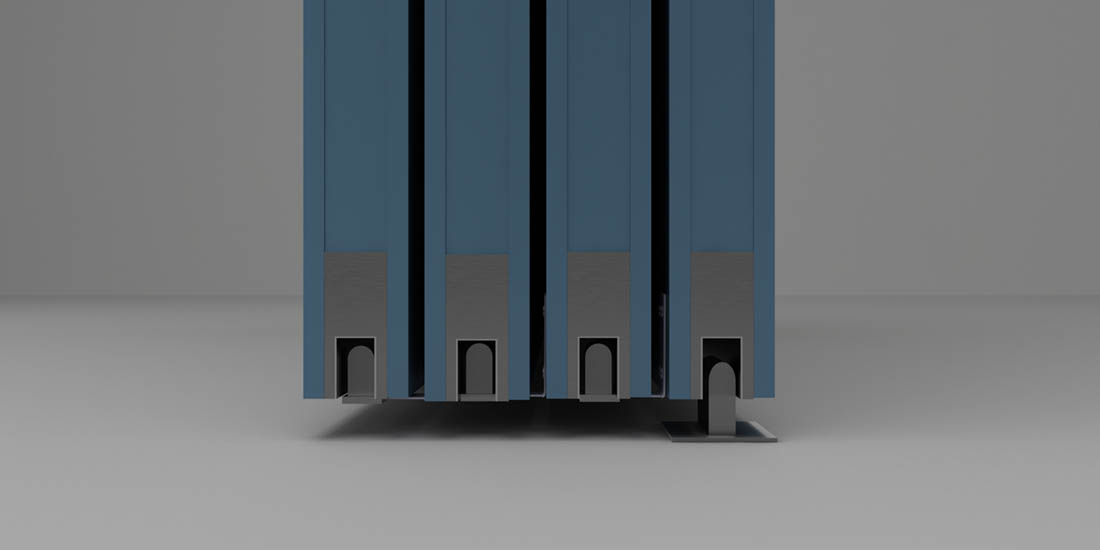

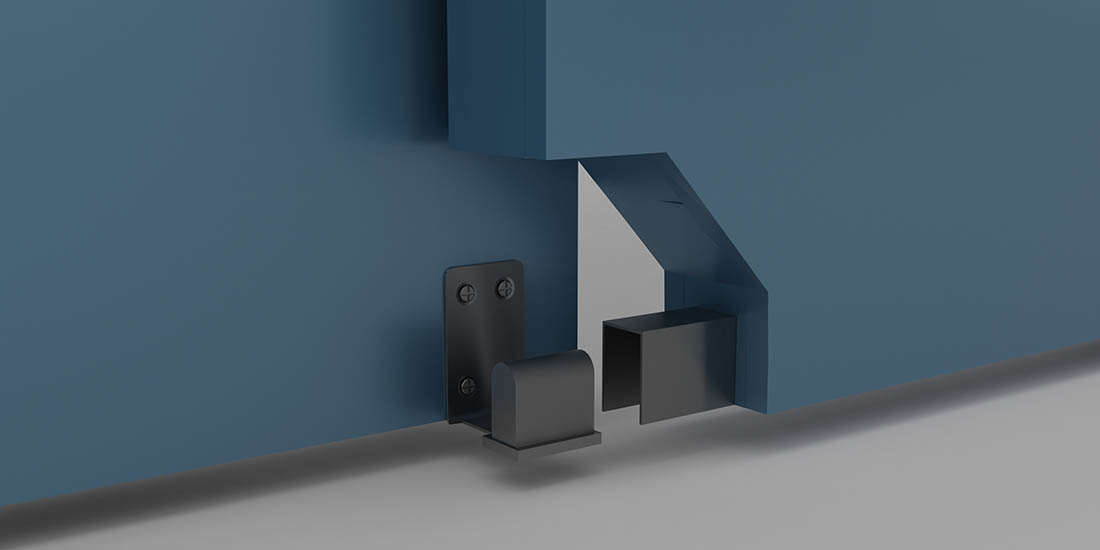

point icon Each module is independent, but the hidden telescopic guide mechanism at the bottom of the modules ensures smooth movement

point icon The mechanism pulls the panels together ,when they are in the closed position,forming a solid wall.

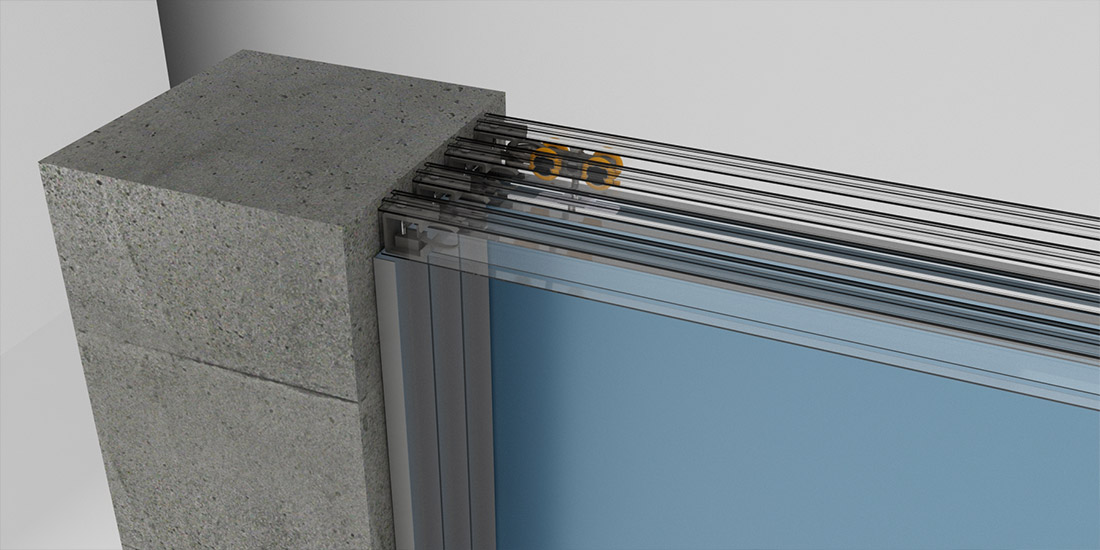

point icon The aluminum track that carries the panels is located in the ceiling code, and there is no track or guide at floor level.

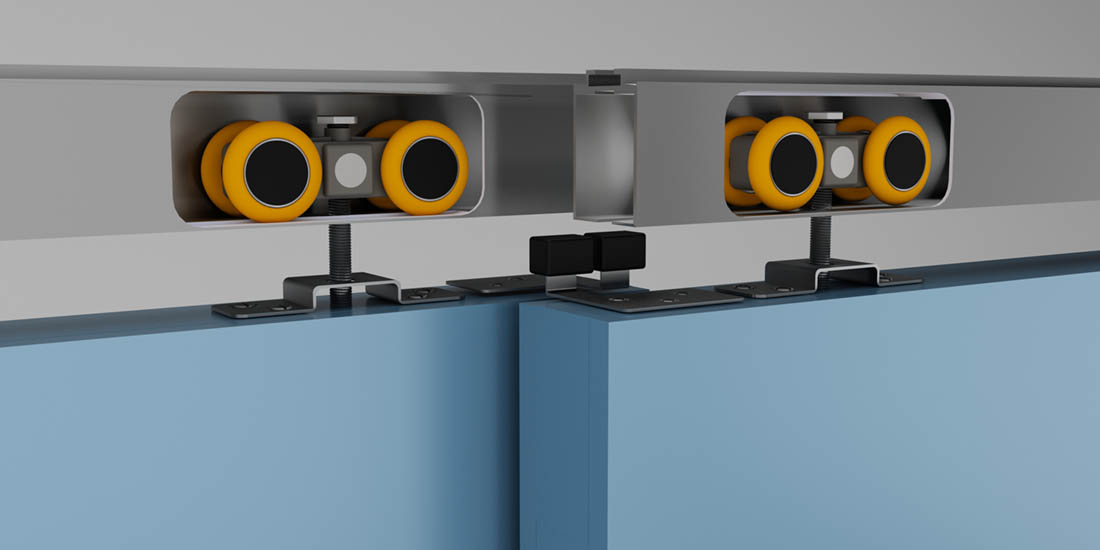

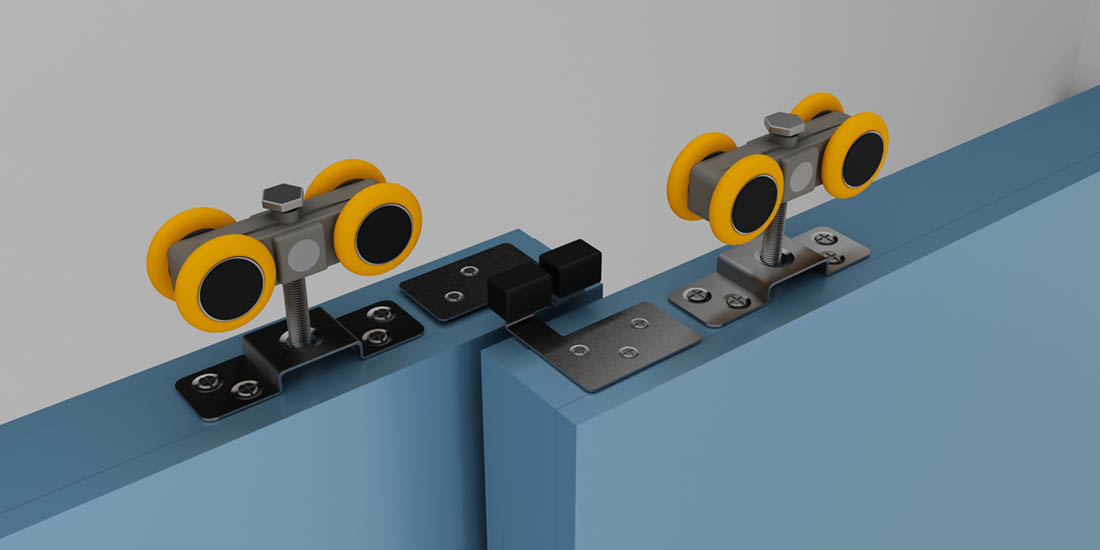

point icon The panels are suspended from the ceiling track using specially designed bend-resistant suspension elements and versatile rollers, which enable the panels’ movement.

System Components

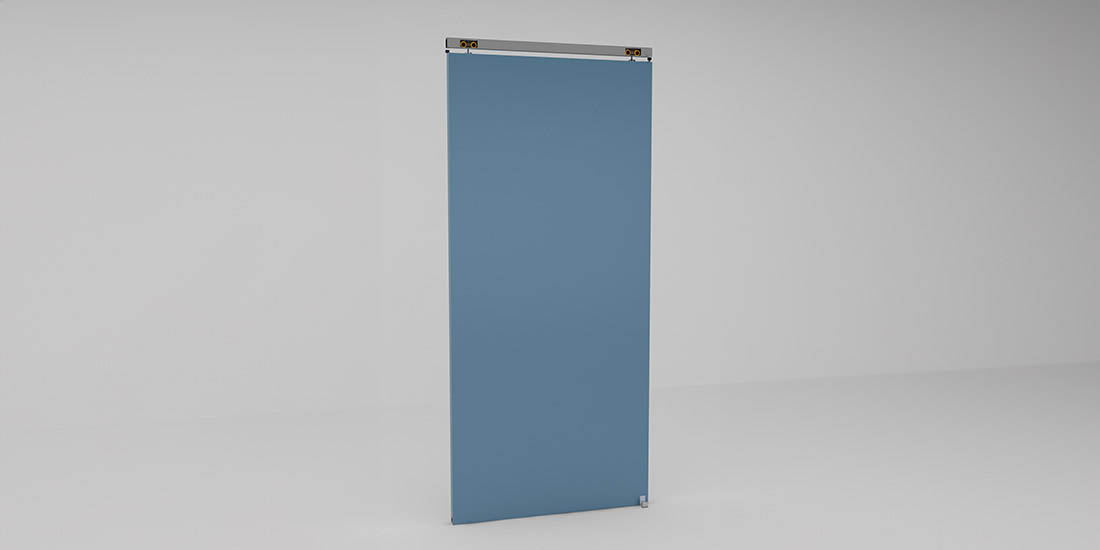

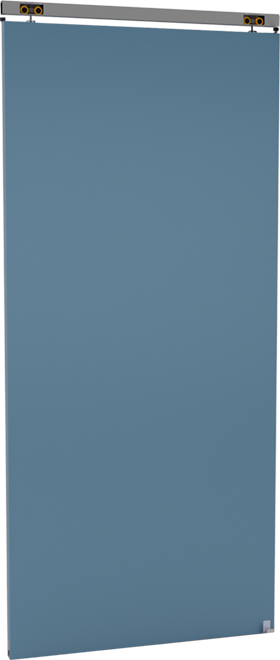

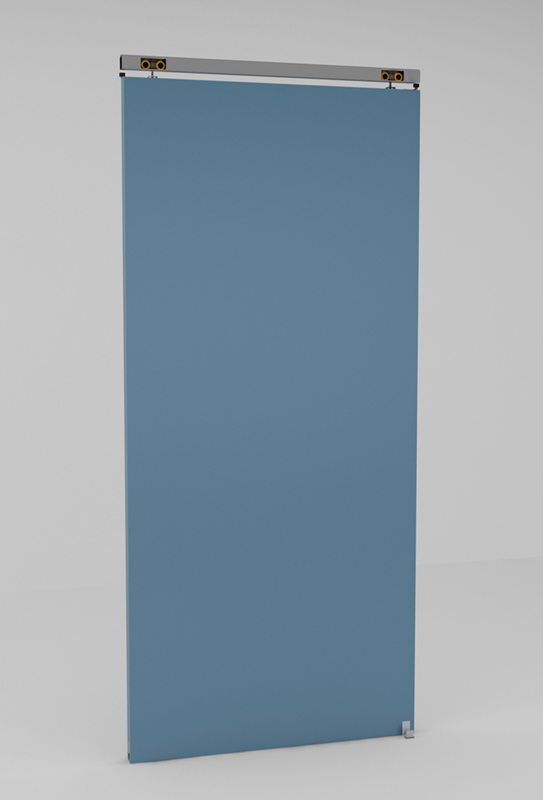

Panslide Wood Manual Wooden Sliding Wall System

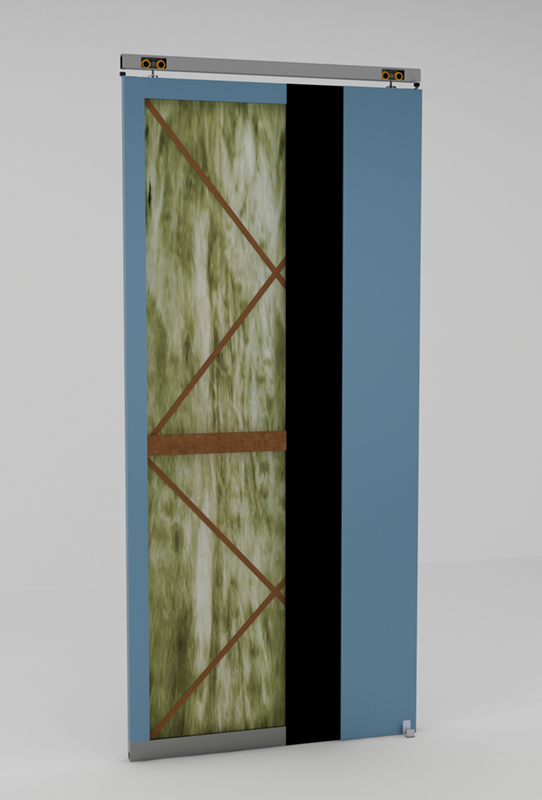

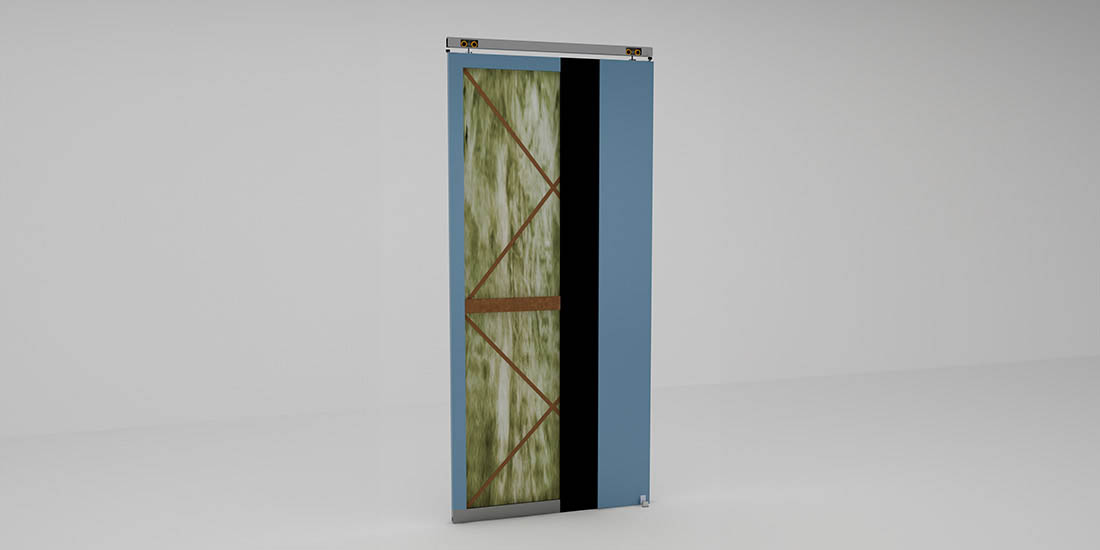

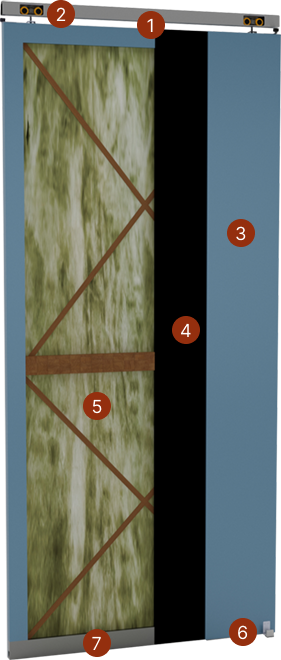

Panslide Wood panel components
wood sliding partition wall door
wood sliding partition wall door
1 - Rail
2 - Roller
3 - 8/10/12/18 mm MDF lam surface
4 - 2.5 mm acoustic barrier (optional)
5 - High-density rockwool board (optional)

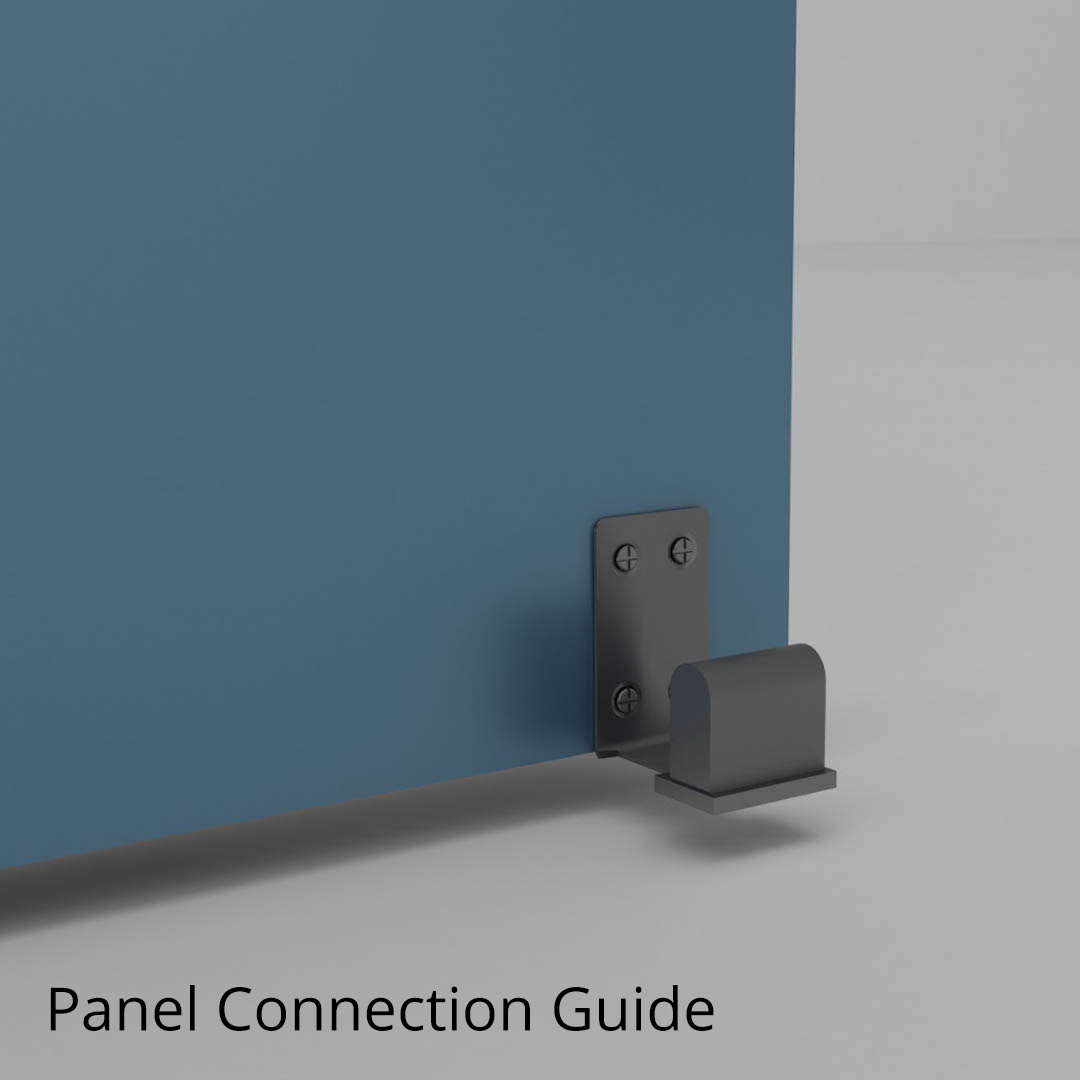

6 - Panel connector guide

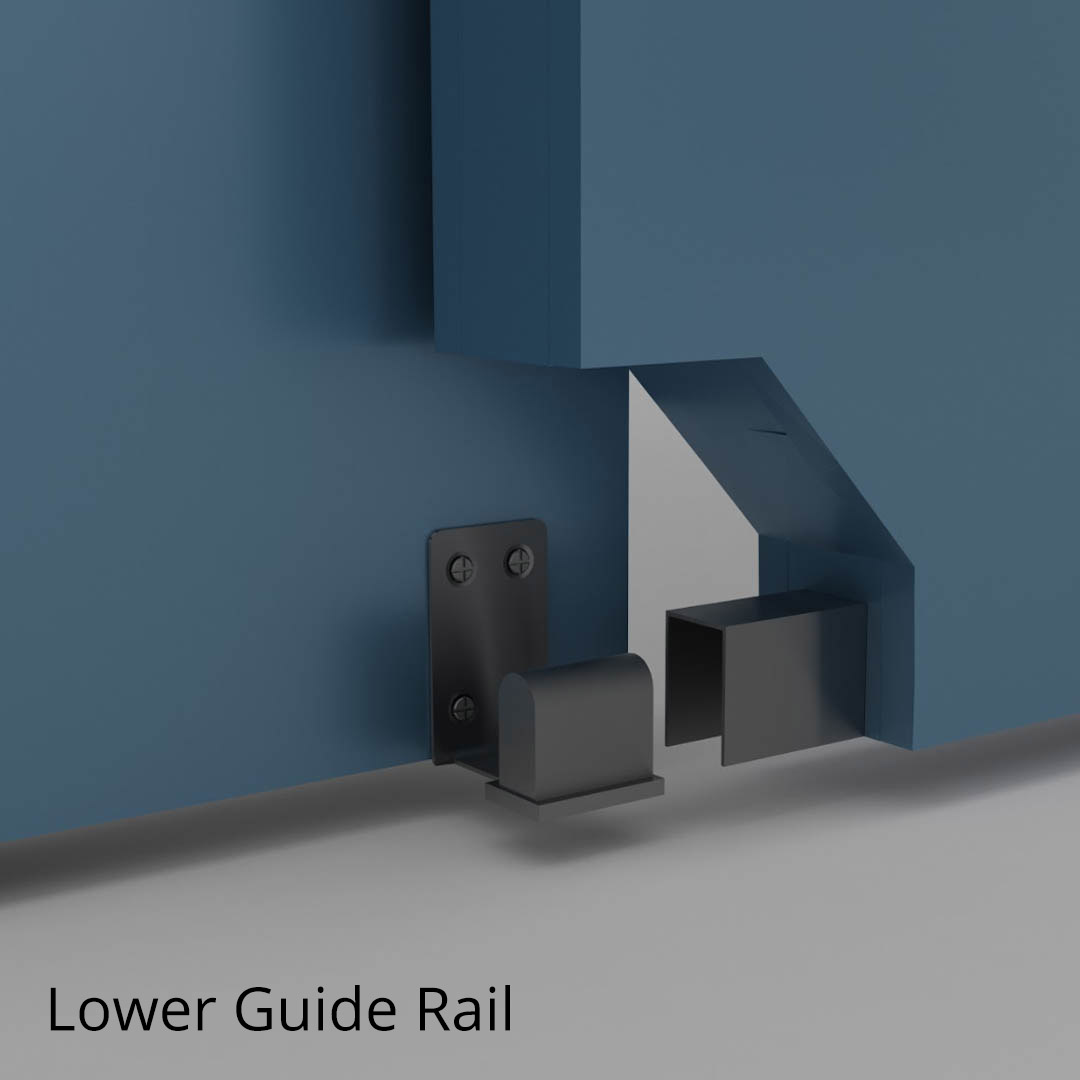

7 - Lower guide rail
Panslide Wood system sections

Our Panslide Wood movable wall system features profile protection and optional hinge detailing.

Profile System Sections

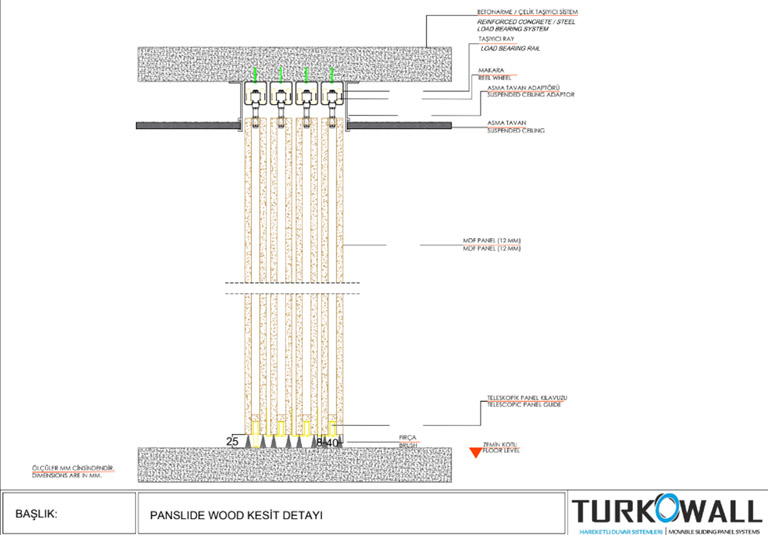

Vertical Section Detail
turkowall slide wooden movable partition wall vertical sections

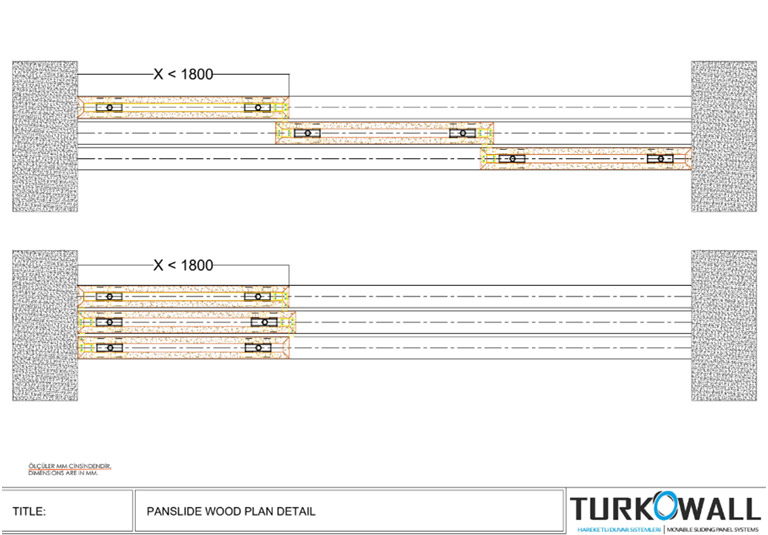

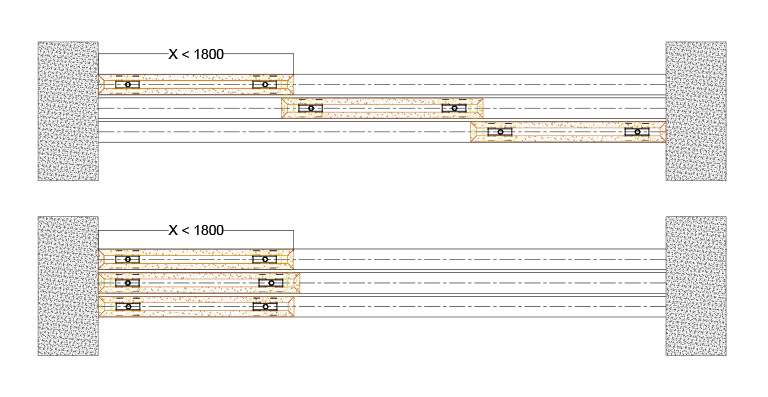

Horizontal Section Detail (plan)
panslide wood plan horizontal detail model
panslide wood sliding partition wall system
panslide wood sliding partition wall system

Panslide Wood Acoustic Components

The Panslide Wood Sliding Wall System provides a lower level of acoustic comfort compared to our other movable wall systems. To create a sliding wall, the modules are connected to each other using telescopic guides, leaving gaps of up to 8 mm. Therefore, when other components in the space are also compatible, it can provide sound insulation of up to 35 decibels..

Specifications Table

Panslide Wood is Turkowall’s wooden sliding wall system. The thickness of the wooden panels can vary (40/50/60/70 mm) based on the system’s height. Similar to Panslide Glass, each panel has a slim supporting rail on the ceiling. The wooden panels also interact using a special mechanism for smooth sliding. Since this system does not have insulation guillotines, it is recommended for spaces where exceptional sound insulation is not needed. Panslide Wood is lightweight and user-friendly.

wood sliding partition wall door
Panslide Wood sliding wall system logo
Semi-Automatic Shutdown
Telescopic Panel
Vertical Guillotine Lock
In-Panel Door
Protected Corner Panel Thickness
Visible Cornered Panel Thickness 4-6-8cm
Maximum Height 400cm
Minimum Width 60cm
Max Width 180cm
Single reel/rollerr
Double reel/rollerr
Sound Insulation Values 30-35 (dB)
Weight per M'² 20-30kg
Anodized Static Painted Aluminum Profile
In-panel glass modules
Door glass modules
Wood surface coating
Fabric surface coating
Glass surface coating
Password or card pass system
Outdoor parking option
Acoustic comfort enhancement option
Acoustic barrier
Insulation Tapes
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall
Panslide Wood sliding partition wall

Technical Tools

You can download the technical design tools, plan, elevations and system sections of the Panslide Wood sliding partition wall system in CAD and PDF formats and use them easily in your projects.

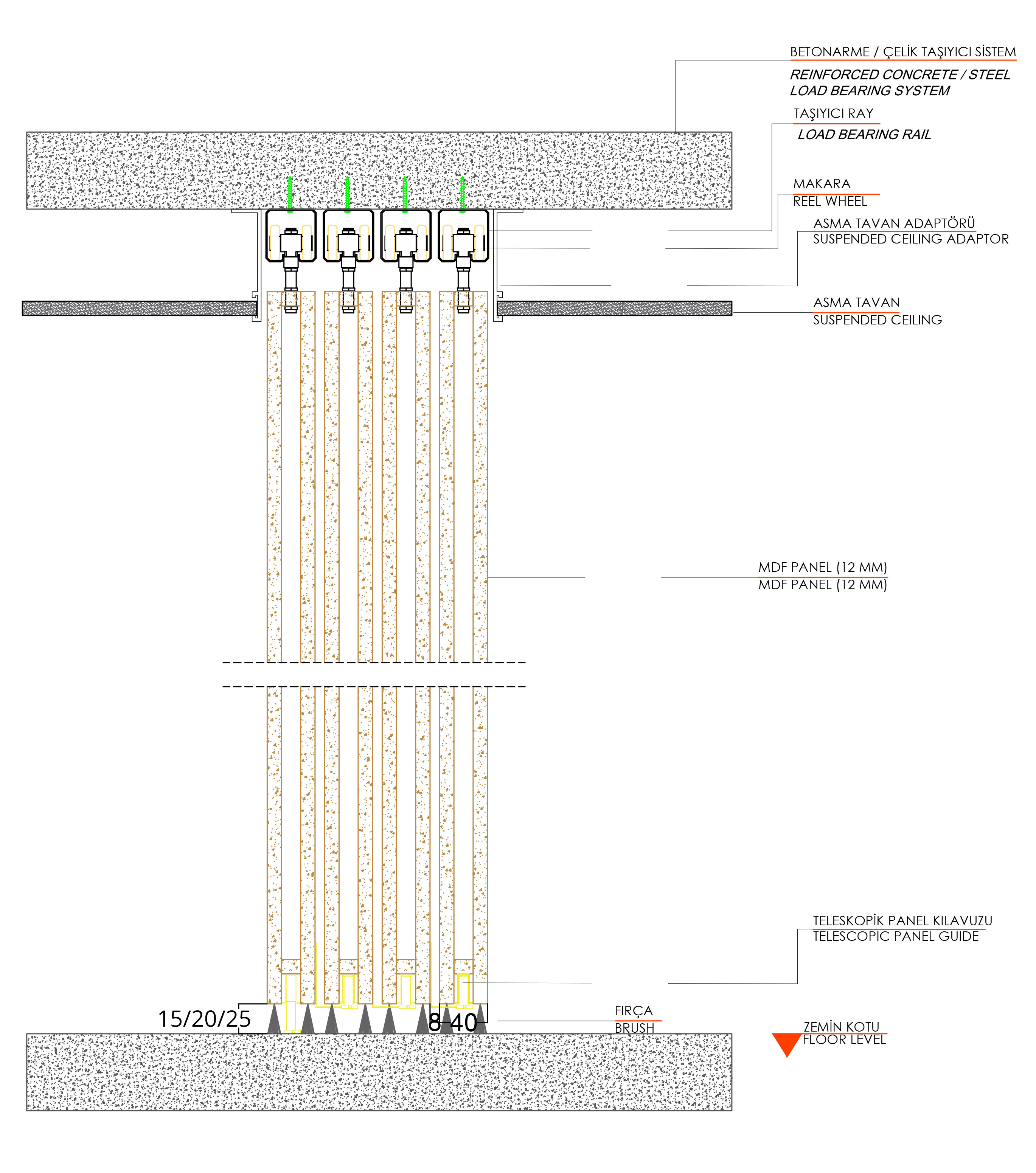

Vertical section of Panslide Wood sliding wall system
System Vertical Sections
dwg iconu
pdf iconu
panslide wood plan horizontal detail model
System Horizontal Sections (plan)
dwg iconu
pdf iconu

Technical Specification

The Panslide Wood Sliding Partition Wall System consists of wall panels specially designed to resist bending, hung on aluminum rails located in the ceiling with unique suspension elements and versatile rolling wheels. These panels move independently and can be stored in a specific location, with thicknesses ranging from 30/40/50/60 mm.Each module in the sliding wall system is independent, yet they push and pull each other thanks to special telescopic mechanisms, providing ease of use.

word ikonuDownload WORD
pdf ikonuDownload PDF

Projects

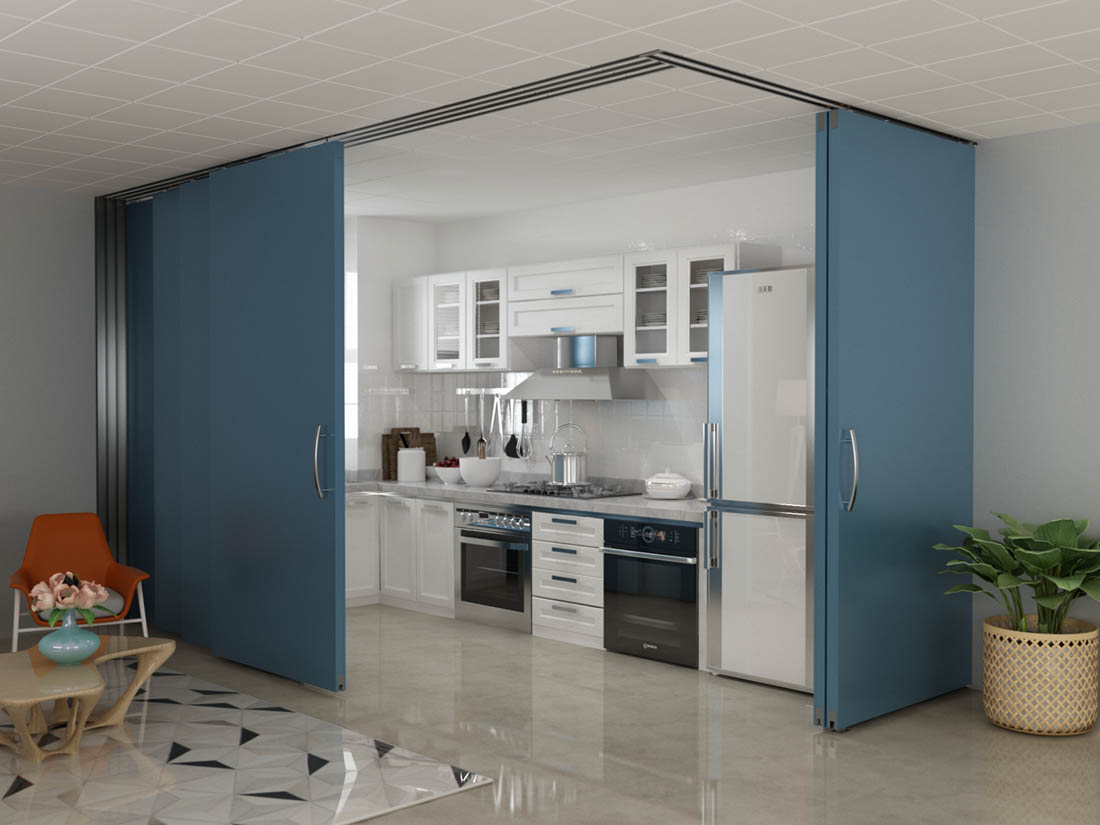

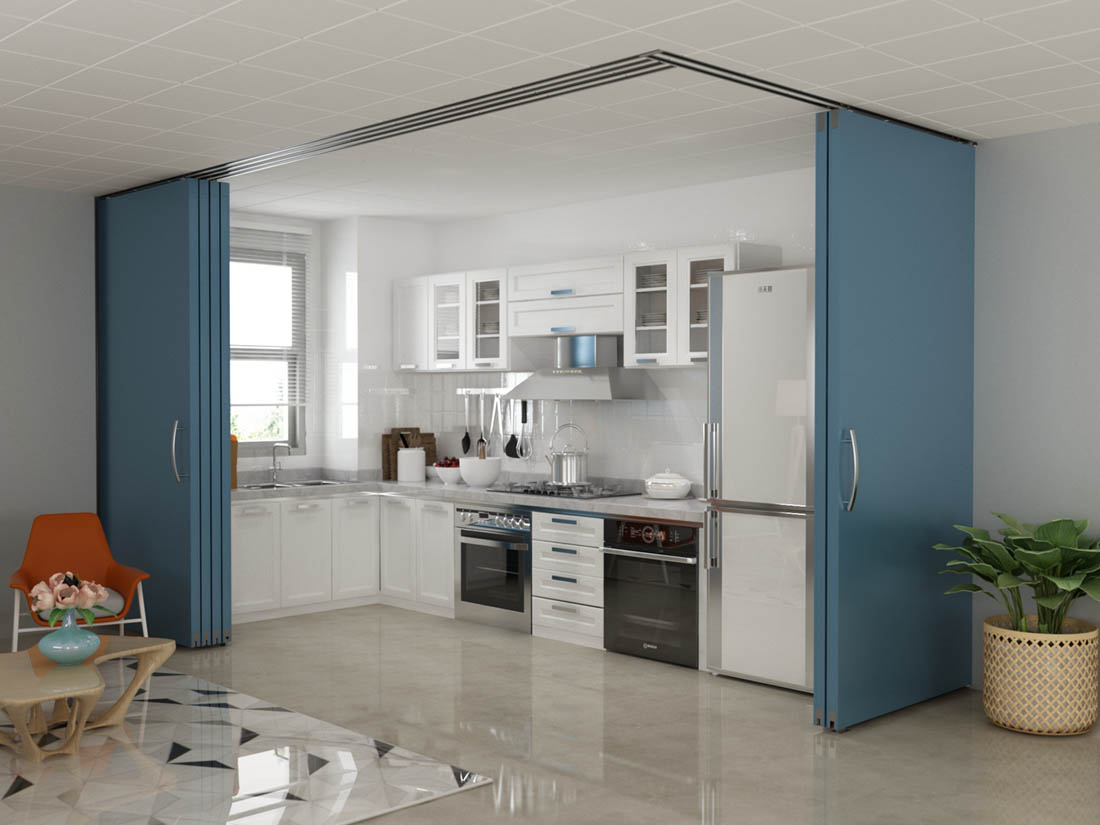

Panslide Wood: Our Panslide Wood Manual Guillotine sliding partition wall system allows you to easily divide areas such as residences or small offices.

sliding movable partition wall Panslide Wood
sliding movable partition wall Panslide Wood
sliding movable partition wall Panslide Wood
sliding movable partition wall Panslide Wood
sliding movable partition wall Panslide Wood
sliding movable partition wall Panslide Wood
sliding movable partition wall Panslide Wood
sliding movable partition wall Panslide Wood

Important Questions and Answers About Wooden Sliding Mobile Walls

Panslide Wood is the general name of the wooden surface or solid (solid) version of Turkowall’s sliding wall systems. Generally made of wood or wood-based materials (MDF, HPL, chipboard etc.), the panels move by sliding on a track hidden in the ceiling to add flexibility of use and aesthetics to your spaces. In this way, they are used to temporarily divide a large area into smaller, independent areas when necessary or to obtain a larger space by combining small areas.

The panels that make up solid sliding wall systems are generally manufactured to be resistant to breaking and bending. The carrier construction, which is created at heights of up to 3 meters, is made from wooden profiles and is filled with honeycomb and insulation materials against stretching. Both surfaces of the panels that make up the system are covered with wood or a wood-derived plate. The edges of the panel are covered with wood tape or an aluminum plate. Strong suspension elements are hidden on these panels to ensure that the panel can be hung and moved.

As with all mobile wall systems, it is essential for the Panslide Wood sliding movable wall system to position a solid carrier structure within the ceiling. It is possible to move the panels forming the sliding wall system in two directions with the rollers inside the carrier rail fixed to this construction. Each panel is hung on the rail with two rollers. There is no rail and/or guide on the floor. The panels are connected with hidden guide mechanisms. In this way, the panels are not only moved without shaking, but also pushed and pulled against each other.

There are no upper or lower acoustic comfort guillotines in the sliding wall systems produced by Turkowall. It is possible to increase the acoustic comfort a little more with the special density brushes we adapt under the panels.

You can use our Panslide Wooden sliding wall systems almost anywhere where the expectation of sound insulation is not very high. To summarize the main areas of use and their purposes:

Residences: To separate areas such as the living room, kitchen, and dining room from each other when necessary, to create private work corners, or to create areas that can be used as guest rooms.

Offices: To split and combine meeting rooms, create customizable spaces for different workgroups, or quickly switch to an open office layout when needed.

Hotels: To divide and combine conference rooms, ballrooms, meeting rooms, or multi-purpose spaces according to different activities.

Restaurants and Cafes: To create different seating arrangements, allocate private areas for smaller groups, or reserve space for special events.

Educational Institutions: To create very large classrooms and activity areas by removing the walls between classrooms when necessary.

Shops and Commercial Areas: To create different shelves when necessary, to enlarge and reduce sales areas according to seasons, or to hide storage areas.

In our Panslide Wood sliding Mobile Wall systems, dimensions up to 4 meters (13.12 Feet) in height and 180 cm (6 Feet) in width remain within standard production limits.

In our sliding wall partition systems, which are produced using 8 mm MDF on both surfaces, the average 1 m2 weight is between 20 and 30 kg. In sliding wall partition systems, the thickness and density of the construction we use in the panel changes depending on the height of the panel. Accordingly, the m2 weight increases.

Generally, MDF is preferred as the final finishing material on the surface. However, to ensure harmony with the user preference or decoration elements in other areas of the space, we can apply solid wood, high-pressure laminate coatings (HPL), natural wood coatings, fabric, wallpaper, glass, etc., surfaces when necessary. We can also perform CNC pattern applications and manufacture with lacquered painted surfaces in accordance with a color code you choose from the RAL code.

It provides acoustic insulation between 20 and 35 dB, depending on the characteristics of the finishing materials used in the panels and other acoustic elements in the space. It is possible to create a little more acoustic comfort by keeping the working spaces to a minimum and using high-density special brushes on the floor and ceiling axes.

Of course, it contributes to heat insulation. With Panslide Wood sliding wall systems, it is easily possible to provide different air conditioning conditions in areas divided into two separate spaces. Since there are no guillotine mechanisms at the top and bottom, although there is a very small amount of heat leakage, this amount is negligible. It may be suitable for use without distinction between interior and exterior in regions where climate conditions are generally stable, but its use in interior spaces is more common because it is relatively weak against conditions such as dust, water, wind, etc.

The answer to this question is the same for all mobile, folding, sliding wall systems. Yes, first of all, it is necessary to prepare a strong steel construction to connect the carrier rail to the ceiling.

It would be more appropriate to leave passage spaces that can also perform door functions by keeping the panel at the beginning or the panel at the end of the sliding wall systems open or closed. However, it is possible to adapt independent doors within the panel when necessary.

If the preliminary preparations are made in accordance with the project, the installation will take place within a maximum of 1 day.

It is sufficient to remove dust from the rails once a year and to perform surface maintenance and cleaning of the carrier rollers and hidden guide mechanisms.

The advantages of wooden sliding walls can be summarized as follows:

Spatial Flexibility Advantage: It optimizes the use of space with its ability to quickly transform areas.

Offers Design Variety: By offering different finish options on the surface, it can add aesthetic value to the space with various wood types, coatings and surface treatments, and can adapt to or contrast with the existing decoration.

Contribution to Sound Control: The well-designed sliding wooden movable wall system creates calmer and more controlled environments by minimizing the sound transmission between different areas. In this respect, it contributes to acoustic comfort and reinforces user satisfaction.

Provides Privacy: It creates separate working, meeting, or living areas by providing visual and acoustic privacy, thanks to its feature of creating a new space by dividing when necessary.

Optimum Use of Natural Light: Unlike completely closed systems, natural light can be allowed to pass through panels containing glass modules if desired.

Easy to Use: Panels are generally easy to move thanks to the rail system and mechanisms that allow the panels to move without shaking and to push and pull each other in synchronization.

Space Saving: When opened, the panels are collected in a parking area and do not take up space like hinged doors.
