Folding Movable Partition Wall

  • Panfold Basic Manual Guillotine free Folding Partition Wall System

System Information

Open easily, use easily.

What is it? What are its Properties? Where is it used?

The Panfold Basic system does not have guillotine profiles used to seal the gaps at the top and bottom, and it is designed to provide an easy way to divide the space, without sound insulation being at the forefront. With its light and simple structure, the system is very easy to open and close, even children can use the system safely and comfortably. There is a brush at the bottom.

confirmation iconFolding Wallconfirmation iconAccordion Systemconfirmation iconSpace Savingconfirmation iconPracticalconfirmation iconImpressive Design

Technical Details

Panfold Basic is a manually foldable partition wall system. There are no guillotines above or below the system. There is an insulating brush below. The last panel compresses the movable wall by expanding towards the wall with its telescopic structure. Using the system is quite simple. Therefore, you can easily integrate it in residences and small offices.

System Components
Panfold Basic panel components
folding movable partition door
folding movable partition door
1 - reel/roller
2 - Rail
3 - High density rockwool board
Panfold Basic System sections

Our Panfold Basic movable wall system features profile protection and optional hinge detailing.

Profile System Sections

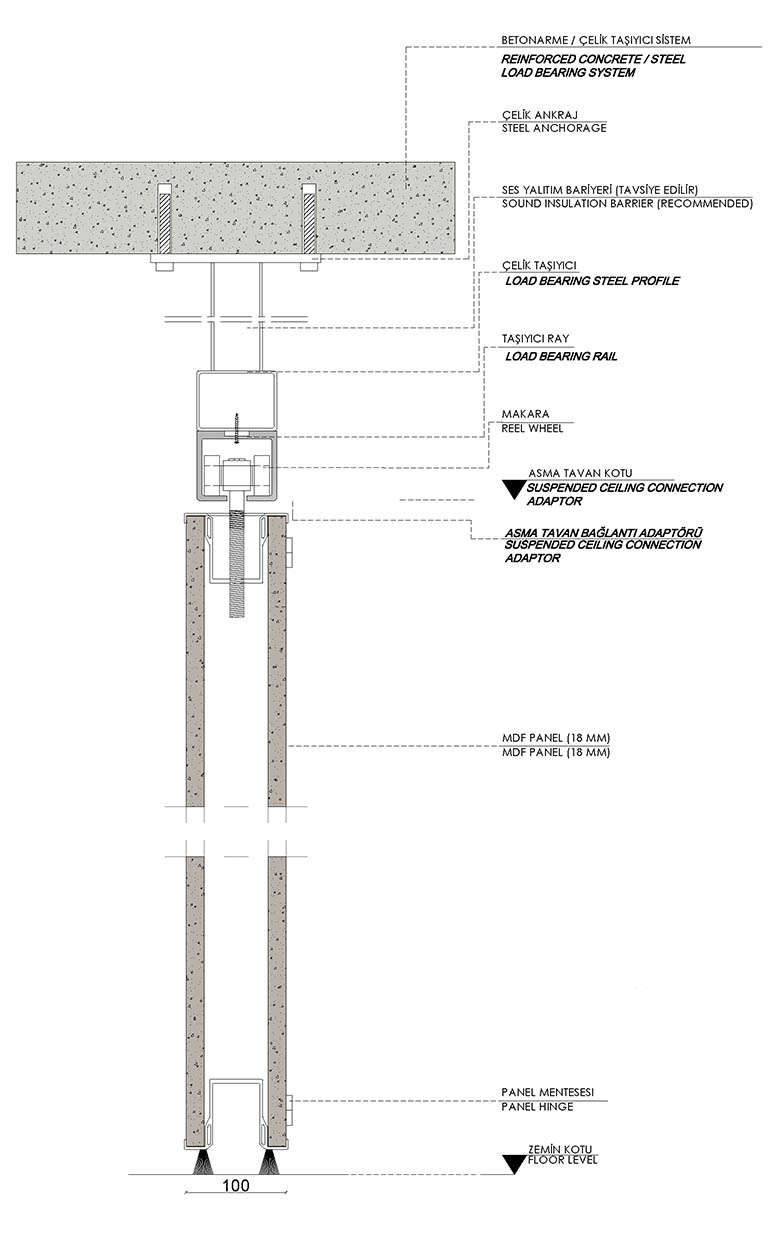

Vertical Section Detail
Panglass basic folding partition wall vertical sections

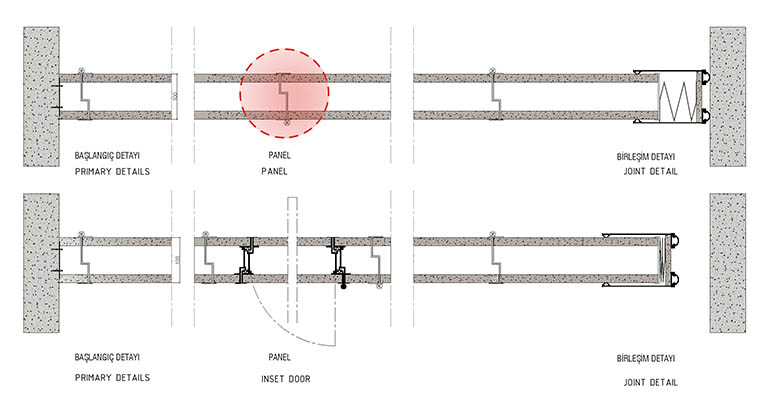

Horizontal Section Detail (plan)
Panglass basic folding partition wall horizontal sections

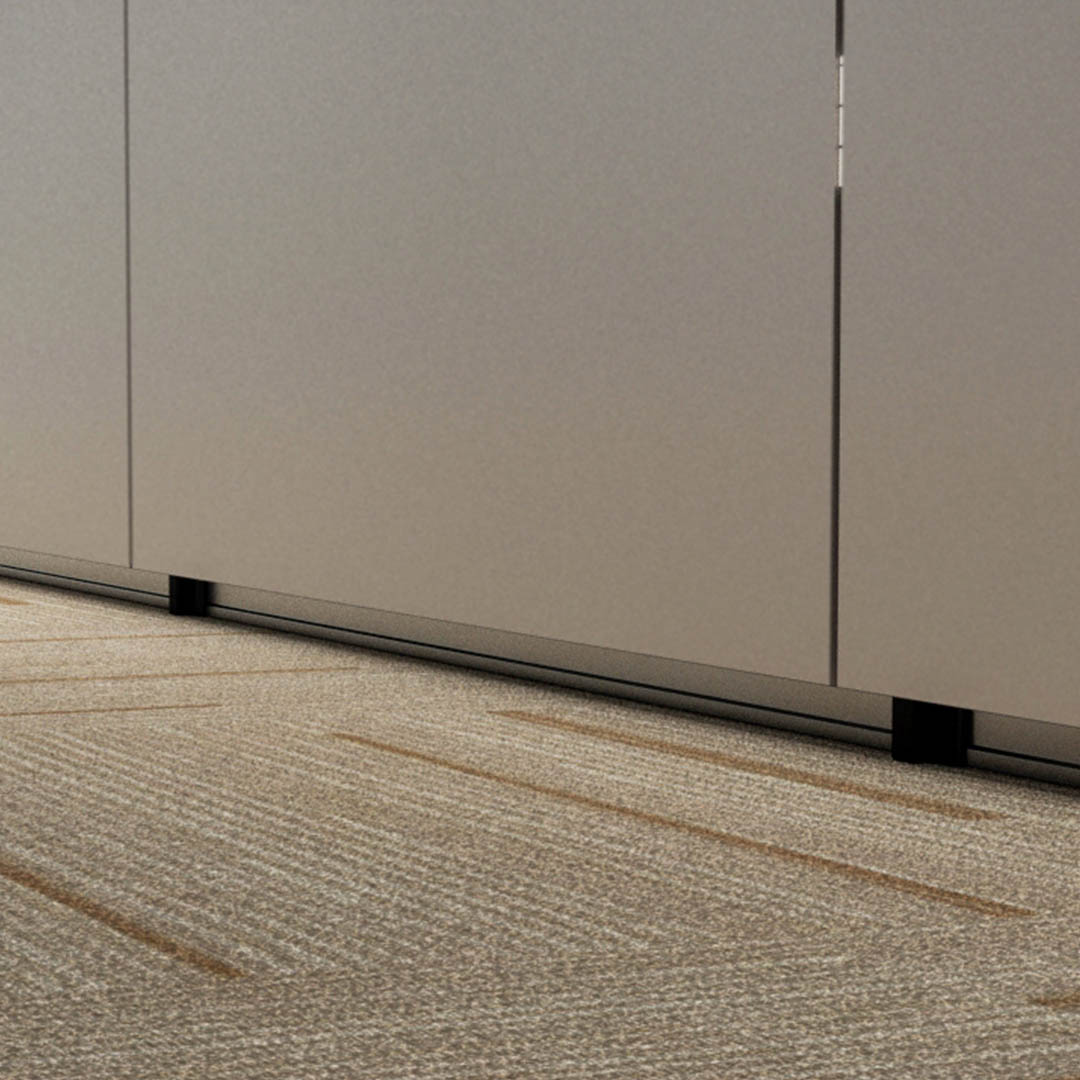

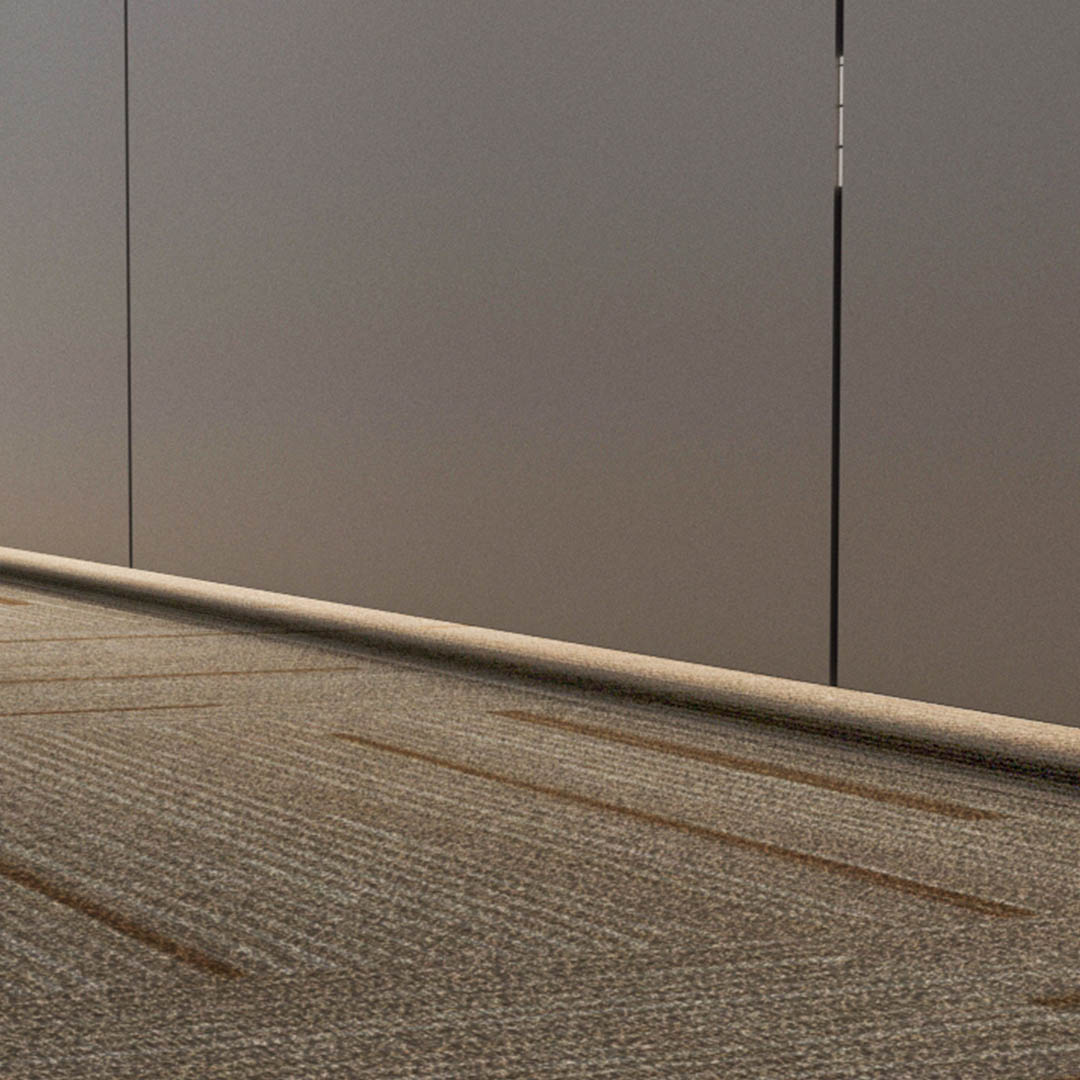

folding movable partition wall connection

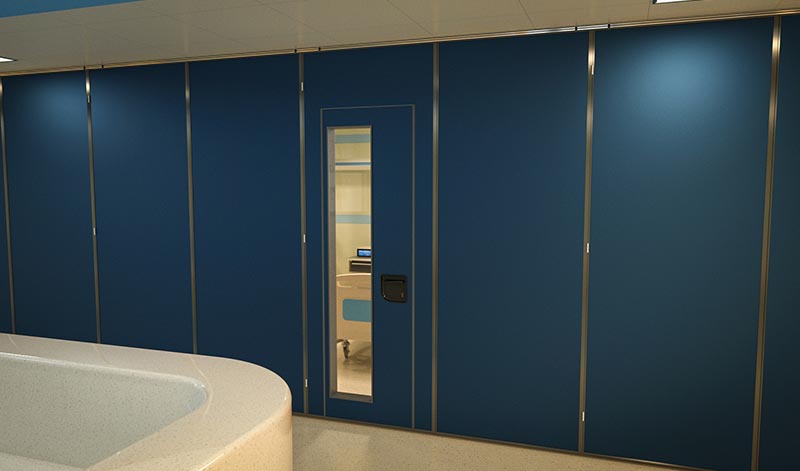

folding movable partition wall connection

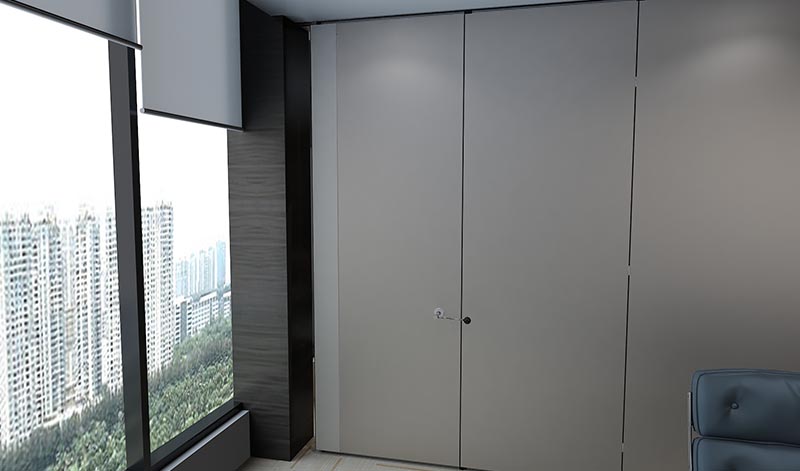

folding movable partition wall connection
Jointed System Sections
Vertical Section Detail
Panglass basic folding partition wall vertical sections

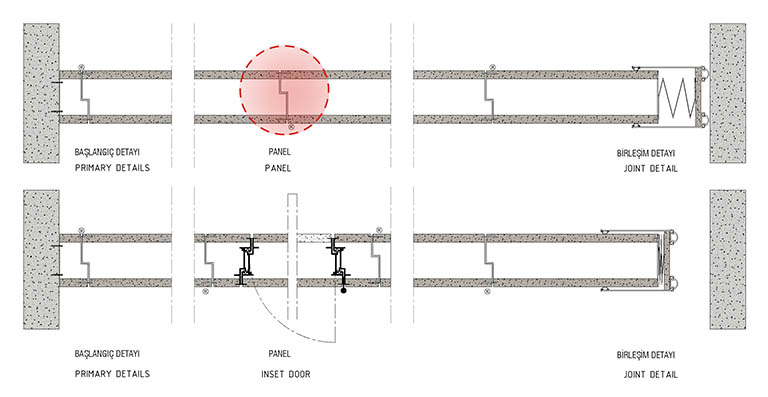

Horizontal Section Detail (plan)
Panglass basic folding partition wall horizontal jointed partitions
folding movable partition wall connection

Panfold Basic Acoustic Components

The Panfold Basic folding partition wall system provides a lower level of acoustic comfort compared to our other systems. If the other components of the space are compatible, it guarantees sound insulation up to 37 decibels..

Acoustic movable partition wall systems

Acoustic Elements

High Density Rockwool (150 kg/m3): Standard

Acoustic wood surface (Special perforated or striped): Optional

Acoustic fabric surface (with acoustic sponge): Optional

Sound insulation level: 25 dB and 37 dB

Specifications Table

The Panfold Basic folding partition wall system is manually operated. In this system, there are no guillotine profiles used to close the upper and lower working spaces. In-panel doors can be integrated into the Panfold Basic folding partition system, the system is finally fixed with the Telescopic Panel and becomes a wall. In the structure of the system, sound insulation is not prioritized, and it is designed in a way to easily divide and combine the space. With its light and simple structure, the system is very easy to open and close, even children can use the system safely and comfortably. There are brush wicks in the lower working space of the folding wall system to contribute to sound insulation.

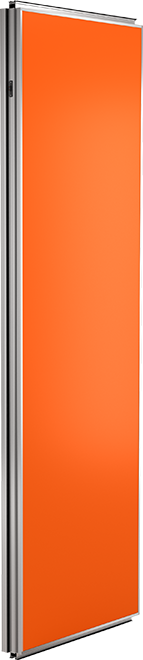

Panfold basic folding wall panel

Technical Tools

You can download the technical design tools, plan, elevations and system sections of the Panfold Basic folding partition wall system in CAD and PDF formats and use them easily in your projects.

Panfold basic manual folding wall system vertical section
System Vertical Sections
dwg iconu
pdf iconu

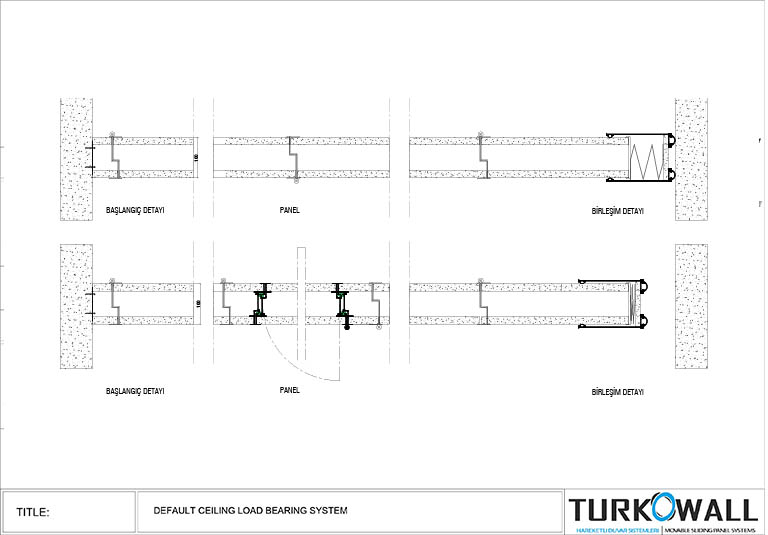

Panfold basic manual folding wall system horizontal section
System Horizontal Sections (plan)
dwg iconu
pdf iconu
Turkowall movable partition panel types
Panel Types
dwg iconu
pdf iconu
movable partition ceiling carrier system details
Ceiling Connection Details
dwg iconu
pdf iconu

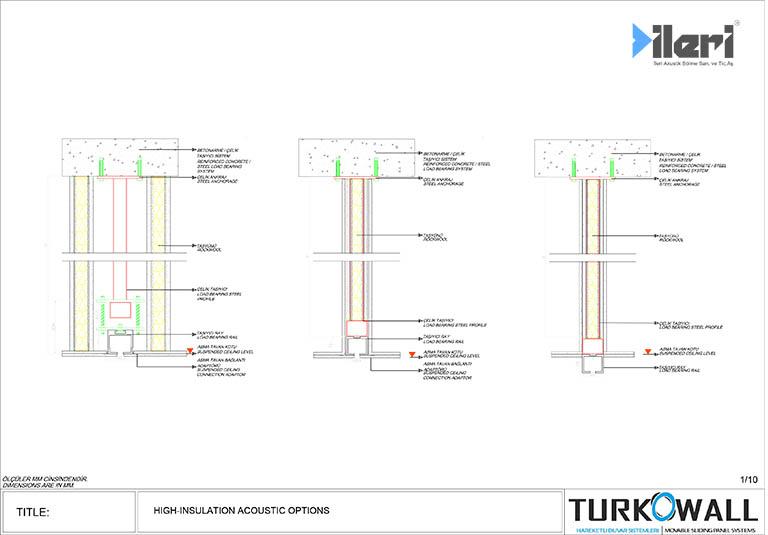

Movable wall systems in-ceiling advanced acoustic insulation details
Acoustic insulation details
dwg iconu
pdf iconu
Movable wall systems in-ceiling carrier construction options
High Acoustic Insulation Details
dwg iconu
pdf iconu

Technical Specification

Panfold Basic is a foldable partition system used in small offices, apartments, small meeting rooms, organizational rooms and restaurants, especially when privacy requirements are not high. In this system, all panels move on the rail hidden in the ceiling. There is no guide or rail on the floor. When our system is opened, it provides a thresholdless transition. Manually pulled panels are connected to each other with hinges. When necessary, we can make in-panel doors, as well as use the first or last panel as a transition. Standard panels do not have a guillotine mechanism, and the bottom space is isolated with the brush under the panels.

Projects

Panfold Basic: Our Panfold Basic Manual Guillotine Free Folding Partition Wall system allows you to easily partition areas such as residences or small offices.
