"> Electric Automatic Guillotine Movable Partition Wall Systems

Automatic Movable Partition Wall

  • Pansmart Automatic Guillotine Movable Wall System

System Information

Smart Solutions for Smart Spaces

What is it? Properties? Where is it used?

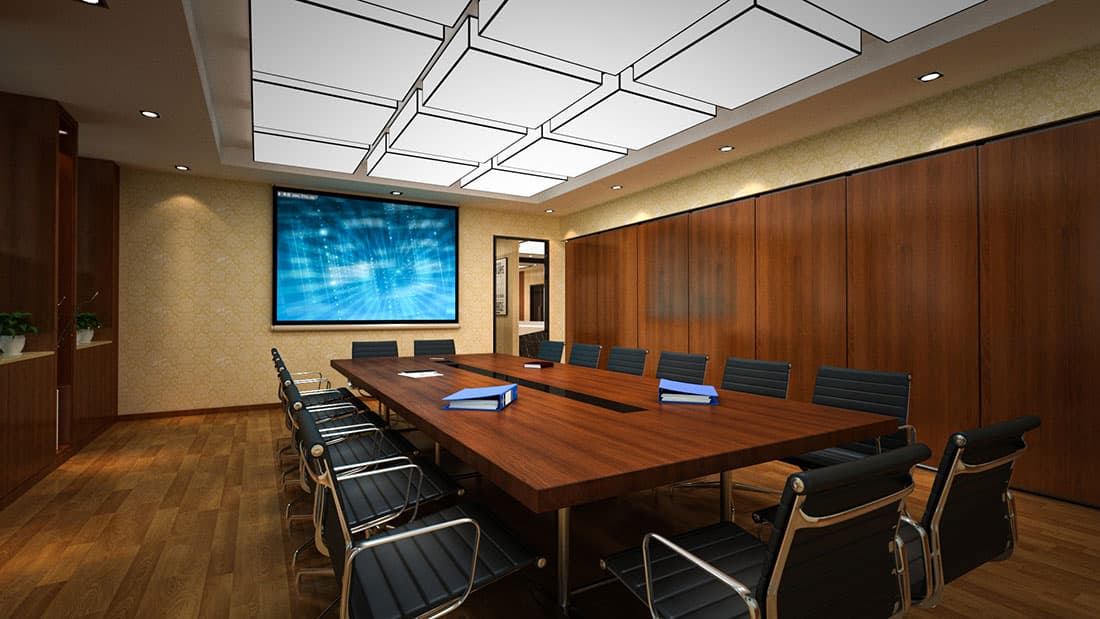

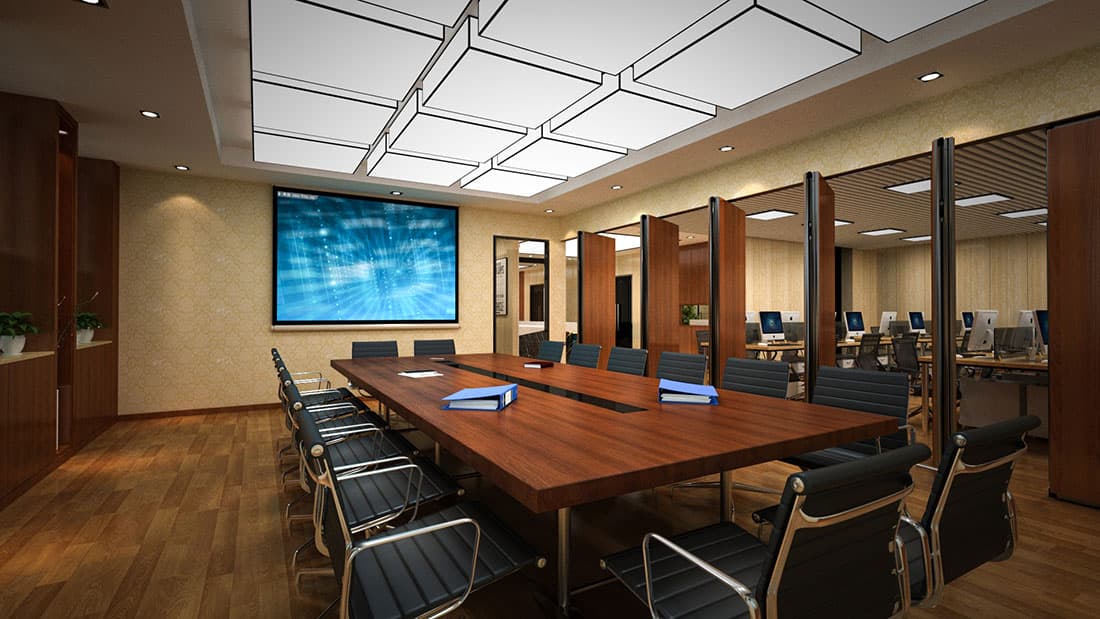

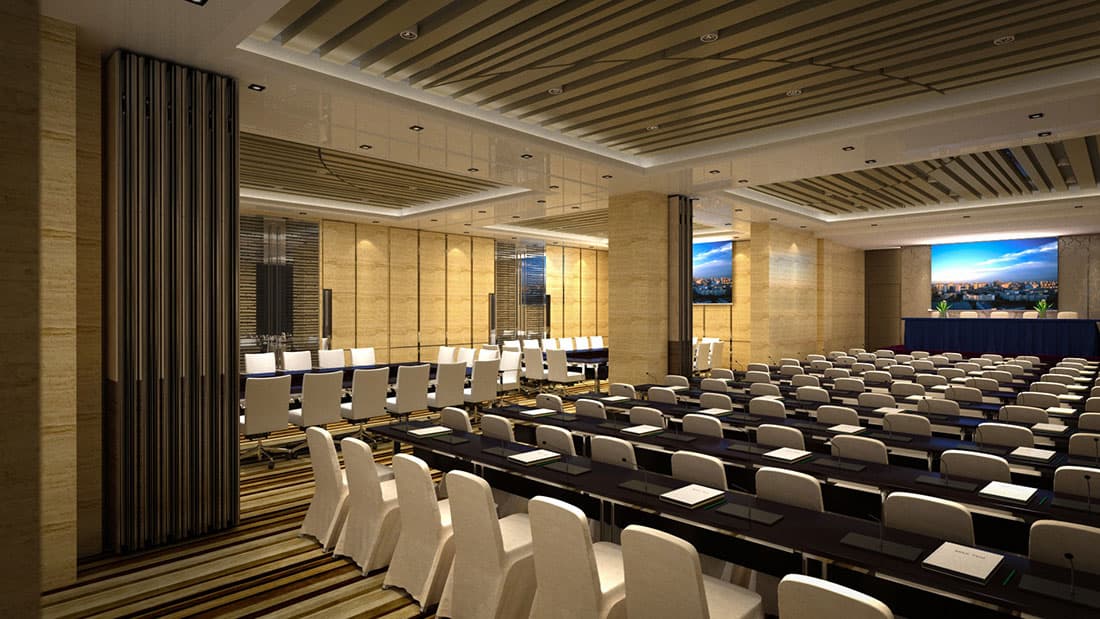

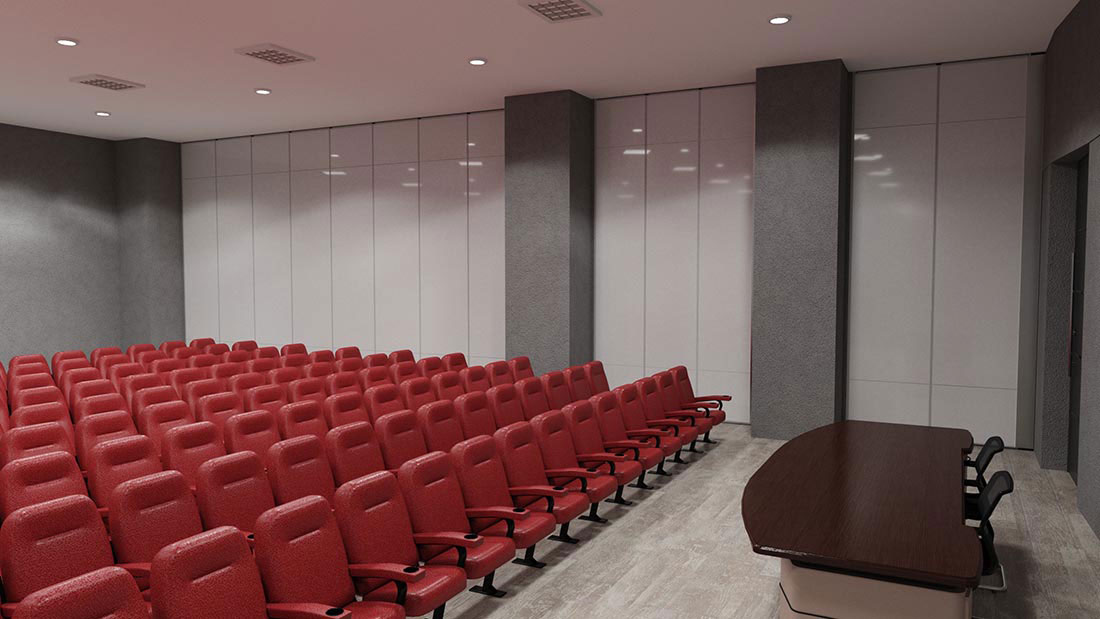

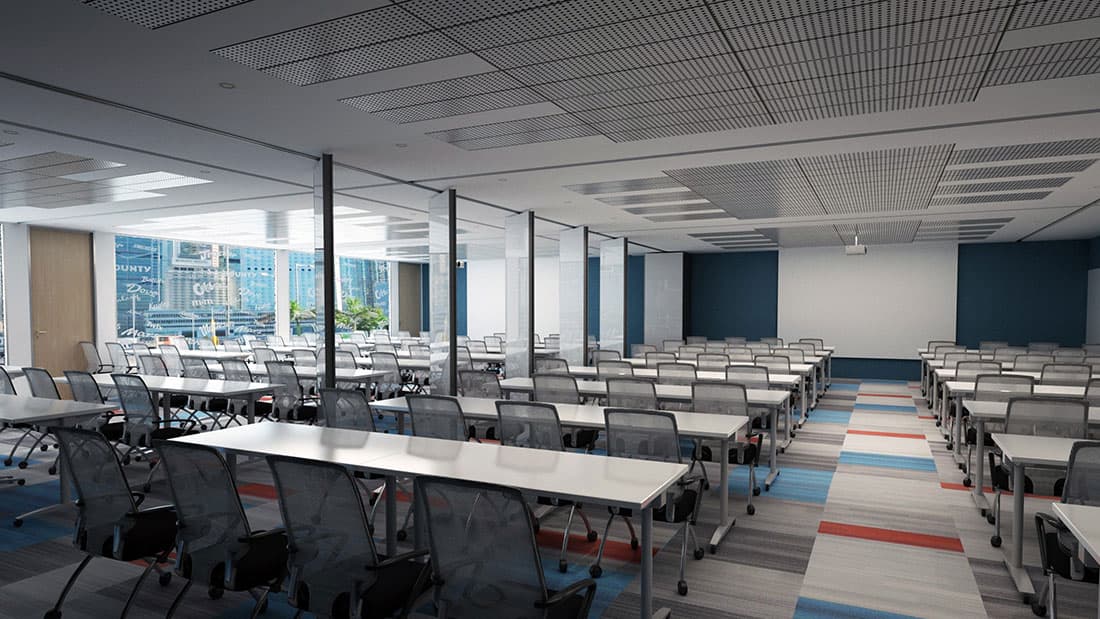

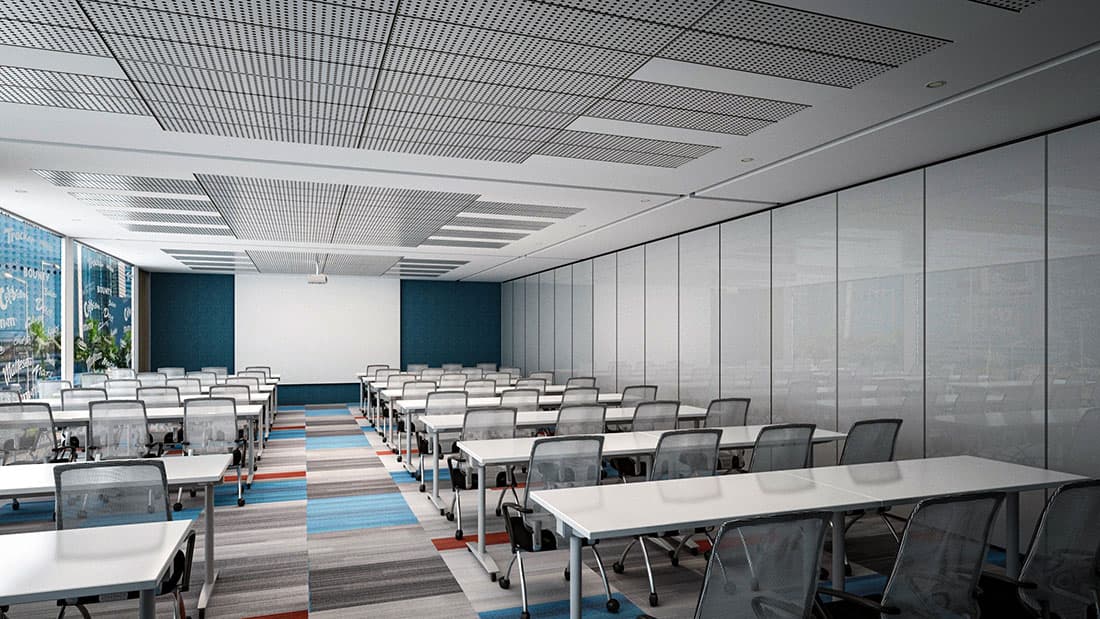

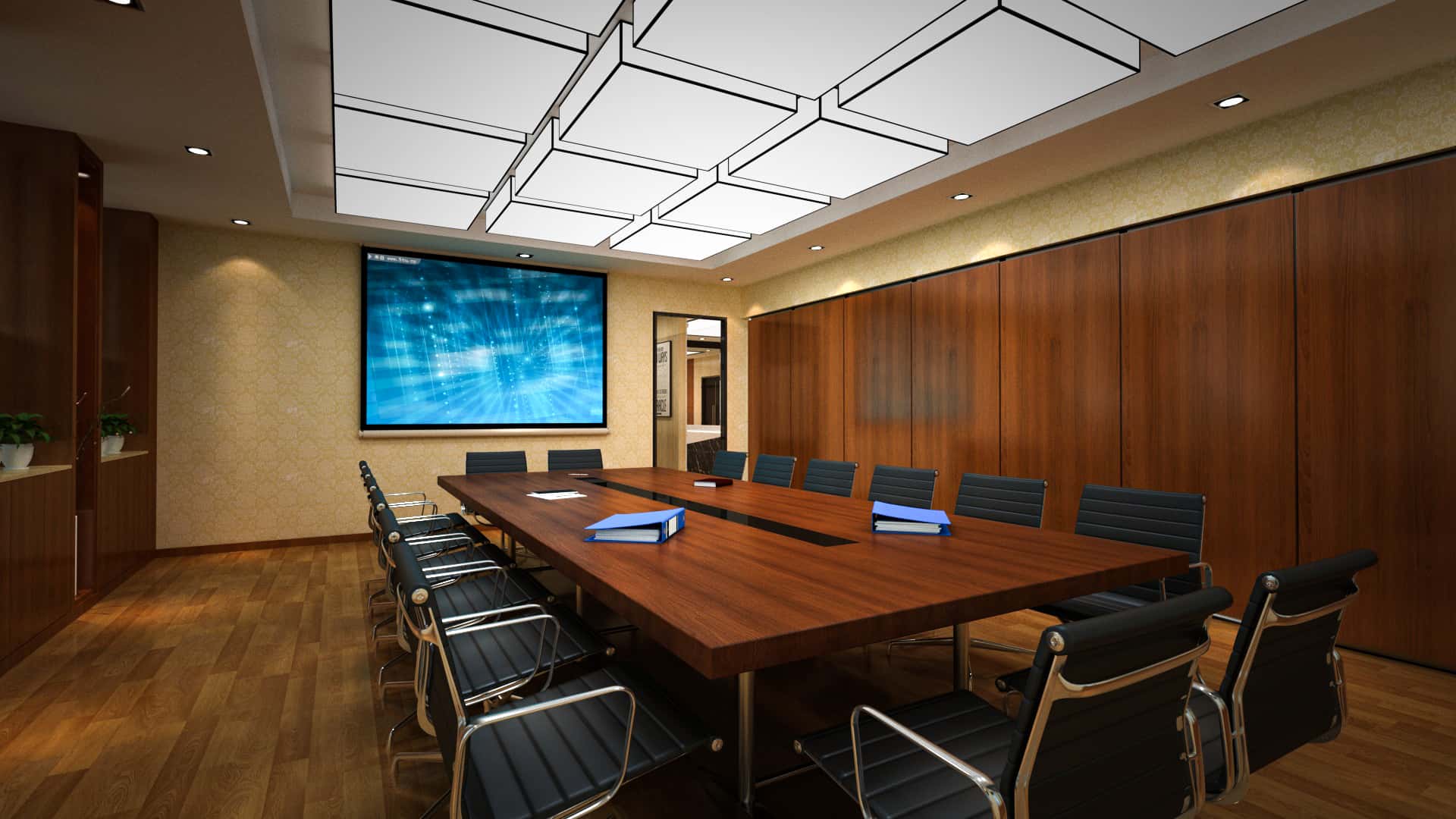

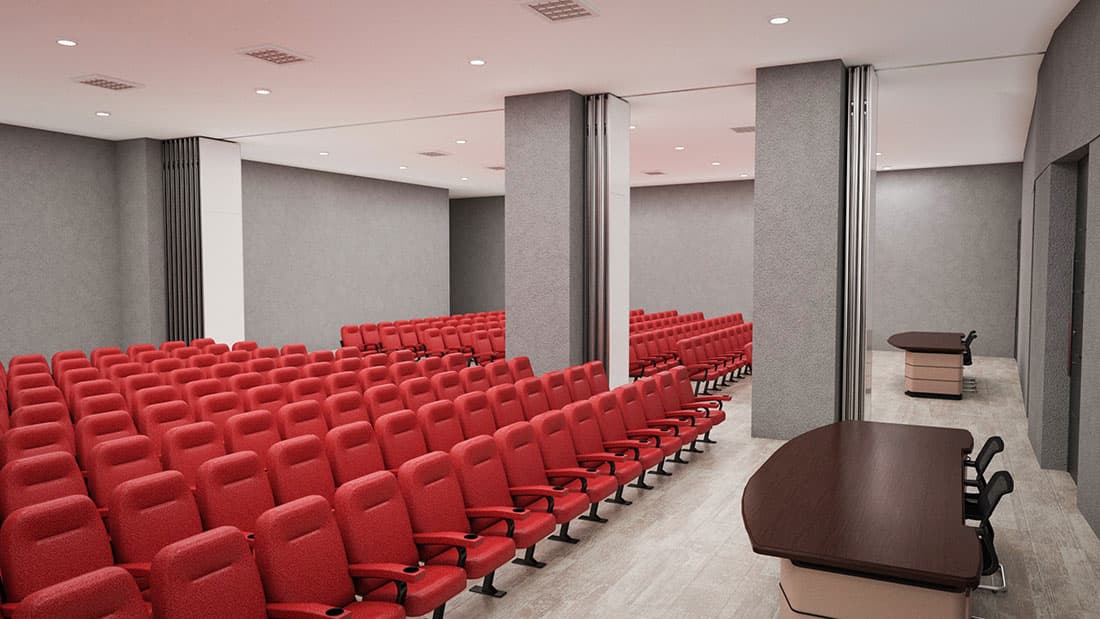

The Pansmart mobile partition wall system offers you speed and flexibility with its high quality. Unlike other systems, Pansmart is powered by electricity, the panels that make up the wall are easy to mount, and the guillotines close vertical gaps instantly. The system is absolutely safe. The Pansmart automatic system is recommended in situations where the room layout is complex, there are many elements, or where multiple movements are required throughout the day. That saves time. The use of Pansmart is advantageous wherever high sound insulation and time savings are sought. You may utilize the system in conferences, meetings, invitation rooms, hotels, offices, or educational institutions.

confirmation iconSmart Solutionconfirmation iconAutomatic time-savingconfirmation iconComfortconfirmation iconAutomatic System

Technical Details

Pansmart is our semi automatic movable partition wall system that we have developed for our customers who demand comfort and ease of use. The semi-automatic mobile wall system has compact motors running on 12 or 24 volts of weak current electrical power. The lower and upper working spaces and the telescopic module on the last panel are opened and closed by the push and pull movement of the motors. You can control the entire system with a switch or a remote.

System Components
Pansmart Panel Components

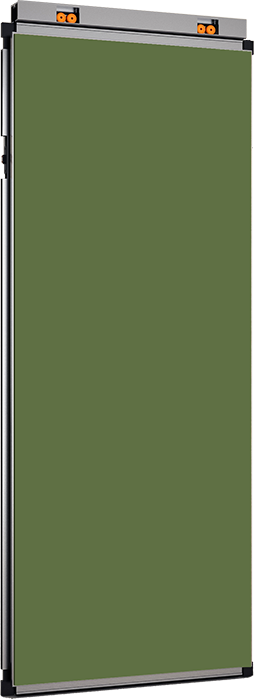

Pansmart electric movable partition wall panel details
Pansmart electric movable partition wall panel details
1 - reel/roller
2 - Rail
3 - Upper acoustic comfort barrier
4 - Acoustic junction wedge
5 - Automatic guillotine system
6 - 5 mm acoustic barrier
7 - High-density rockwool board
8 - Electric motor
9 - Lower acoustic comfort barrier
10 - Weak current switch (24/12 volt)
Pansmart System Sections

Our Pansmart partition wall system has profile protection and an option for joint detailing.

Profile System Sections

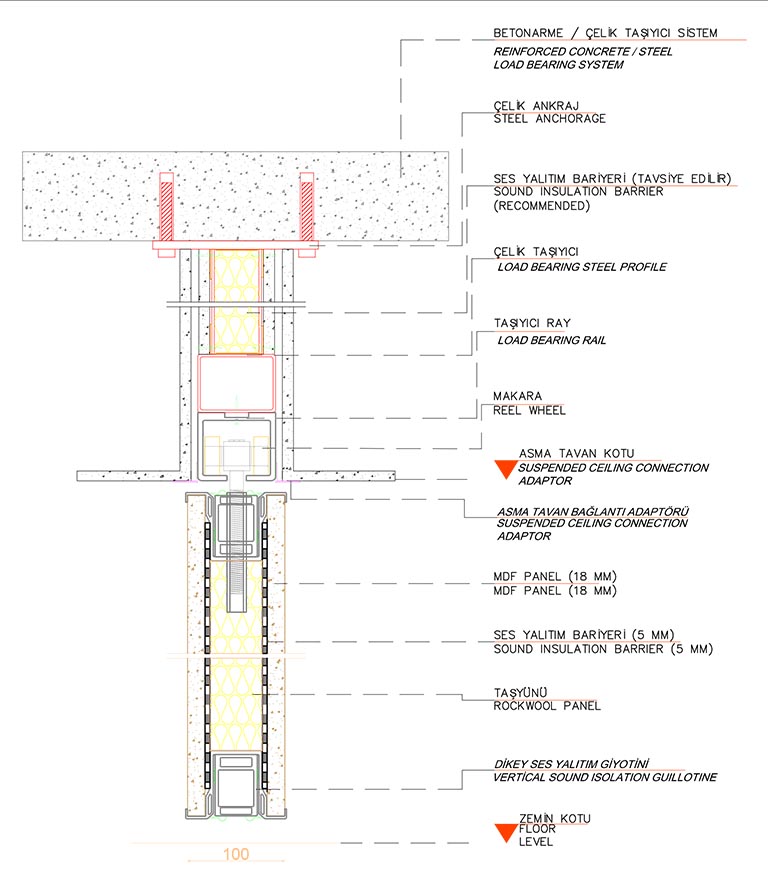

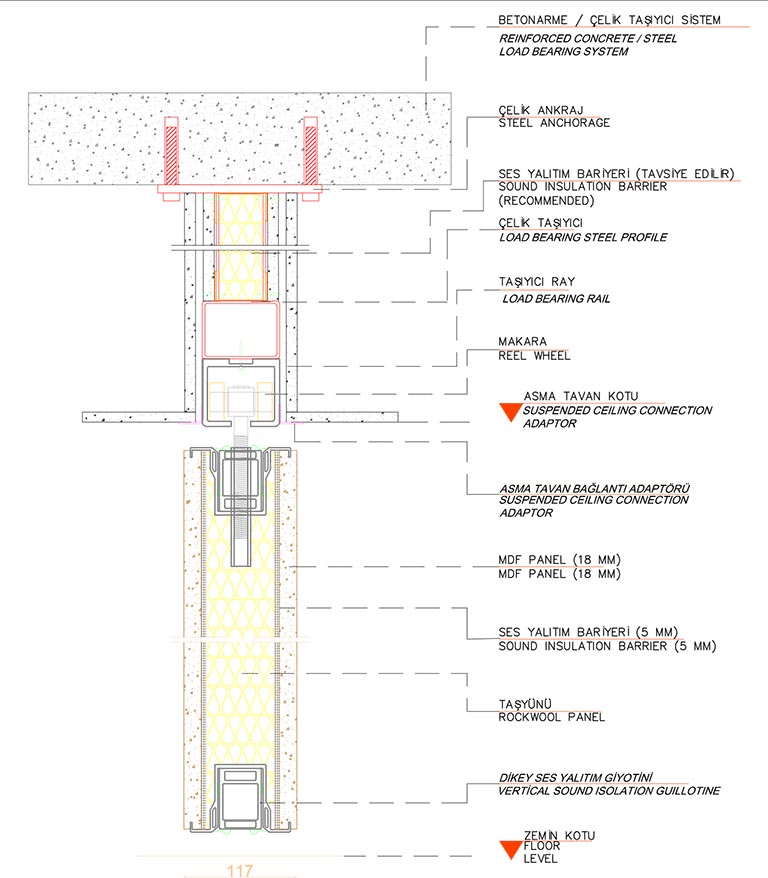

Vertical Section Detail
Movable partition wall vertical sections

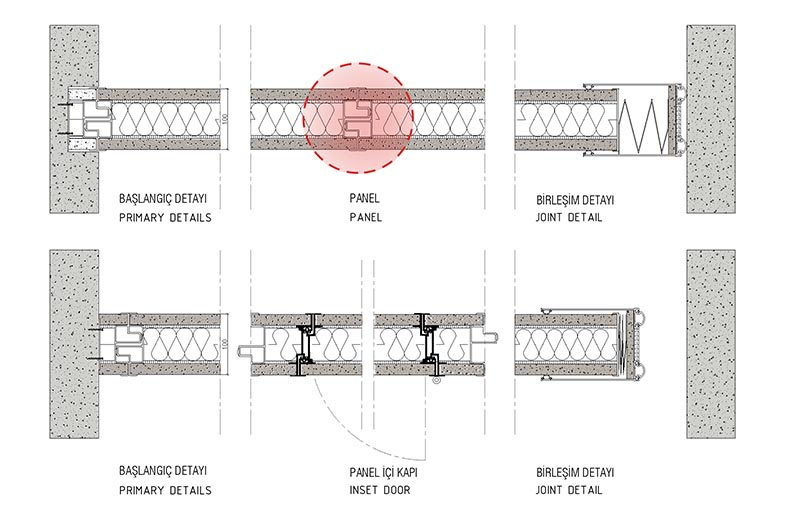

Horizontal Section Detail (plan)
Movable partition wall plans

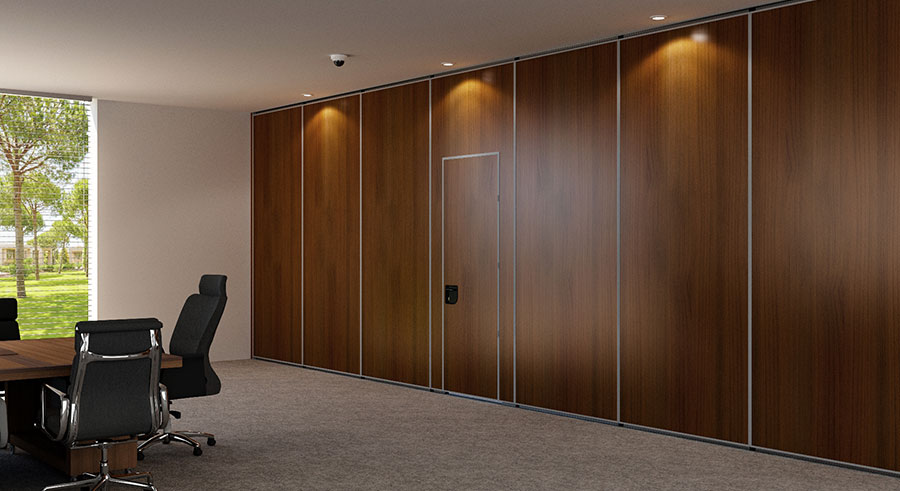

Movable partition wall sample photo
Jointed System Sections

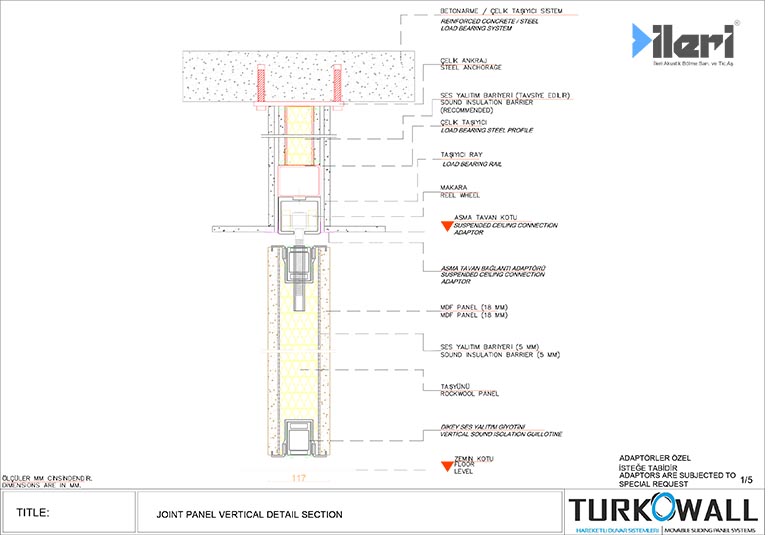

Vertical Section Detail
Movable partition wall vertical sections
">
Horizontal Section Detail (plan)
Movable partition wall plans
Movable partition wall sample photo

Pansmart Acoustic Components

The Pansmart movable partition system promises the highest acoustic comfort compared to our other systems. The rubber wicks, which are integrated into the specially developed vertical and horizontal joint profile, guarantee progressive sound insulation. It guarantees sound insulation of up to 60 decibels if other components in the room are compatible.

Even the standard version of our systems has more acoustic characteristics than its counterparts. Depending on the intended use and requirements, we offer standard, high, and advanced sound levels.

Acoustic movable partition wall systems

Acoustic Elements

High-Density Rockwool (150 kg/m3): Standard

Soundproofing barrier (5 mm on both insides): Standard

Acoustic junction wedge (4 corners on each panel): Standard

Acoustic wood surface (Special perforated or striped): Optional

Acoustic fabric surface (with acoustic sponge): Optional

Vertical sound insulation barrier (Guillotine): Standard

Horizontal concave-convex aluminum caps: Standard

Horizontal concave and convex insulation cords: Standard

Sound insulation level: 45 dB and 60 dB

Specifications Table

The Pansmart mobile partition wall system offers you speed and flexibility with its high quality. Unlike other systems, Pansmart is powered by electricity, the panels that make up the wall are easy to mount, and the guillotines close vertical gaps instantly. The system is absolutely safe. The Pansmart automatic system is recommended in situations where the room layout is complex, there are many elements, or where multiple movements are required throughout the day. That saves time. The use of Pansmart is advantageous wherever high sound insulation and time savings are sought. You may utilize the system in conferences, meetings, invitation rooms, hotels, offices, or educational institutions.

Pansmart electric movable partition wall panel details

Technical Tools

You can download the technical design tools, plan, elevation and system sections of the Pansmart electric semi-automatic movable partition wall system in CAD and PDF formats and use them easily in your projects.

Hareketli bölme duvar dikey kesitleri
System Vertical Sections
dwg iconu
pdf iconu
Movable partition wall plans
System Horizontal Sections (plan)
dwg iconu
pdf iconu
Turkowall movable partition panel types
Panel Types
dwg iconu
pdf iconu

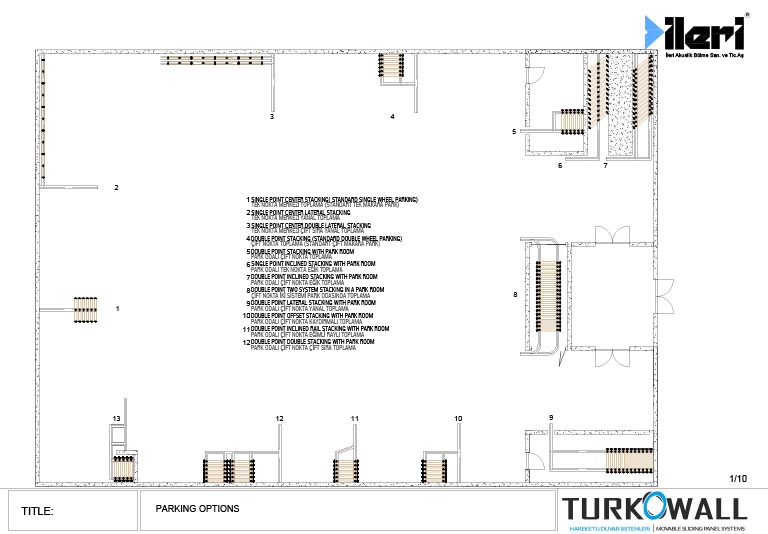

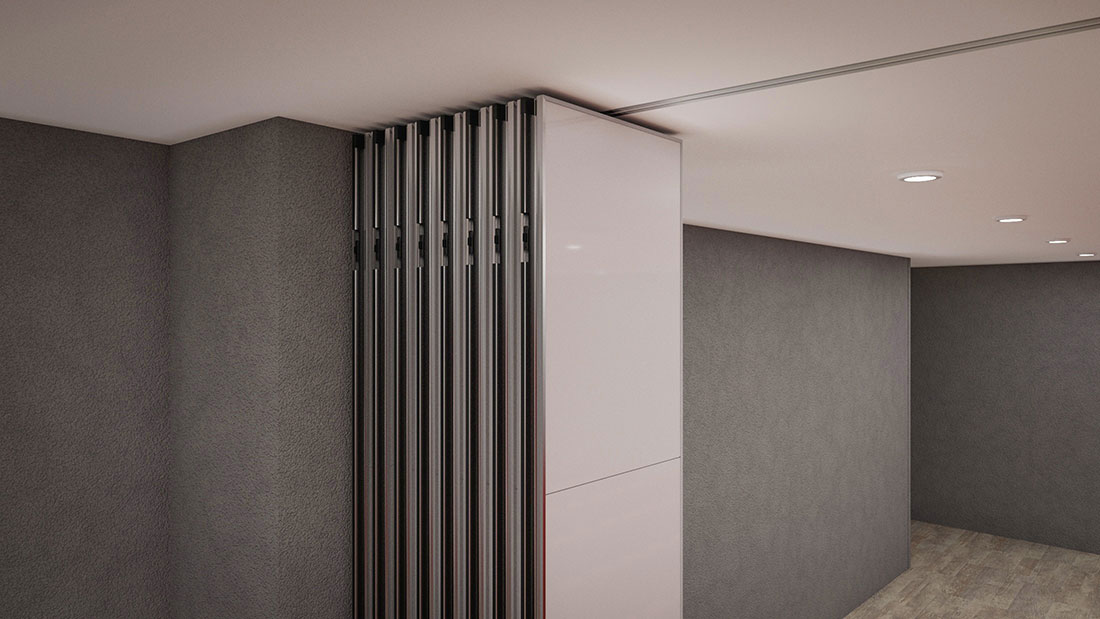

hareketli katlanır duvar bölme park seçenekleri
Parking Types
dwg iconu
pdf iconu

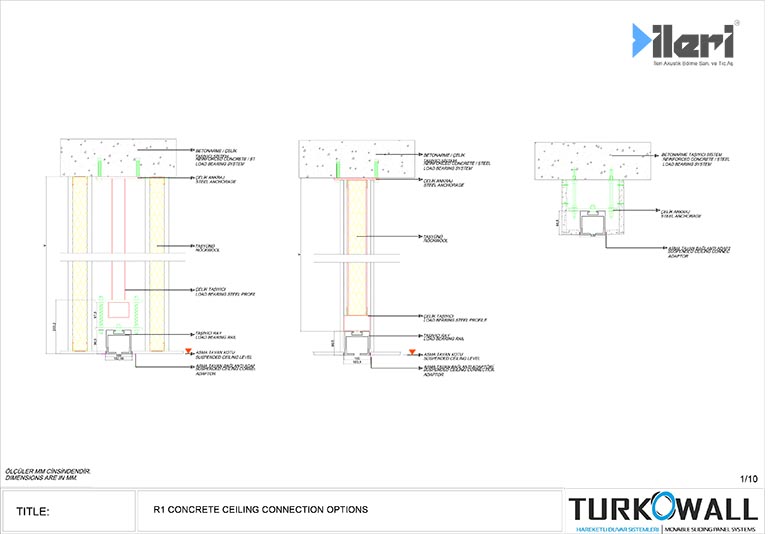

Movable partition wall ceiling carrier system details
Ceiling Connection Details
dwg iconu
pdf iconu
Movable wall systems in-ceiling advanced acoustic insulation details
Acoustic insulation details
dwg iconu
pdf iconu

Technical Specifications

Pansmart is our semi-automatic movable partition wall system that we have developed for our customers who demand comfort and ease of use. The semi-automatic mobile wall system has compact motors running on 12 or 24 volts of weak current electrical power. The lower and upper working spaces and the telescopic module on the last panel are opened and closed by the push and pull movement of the motors. You can control the entire system with a switch or a remote.

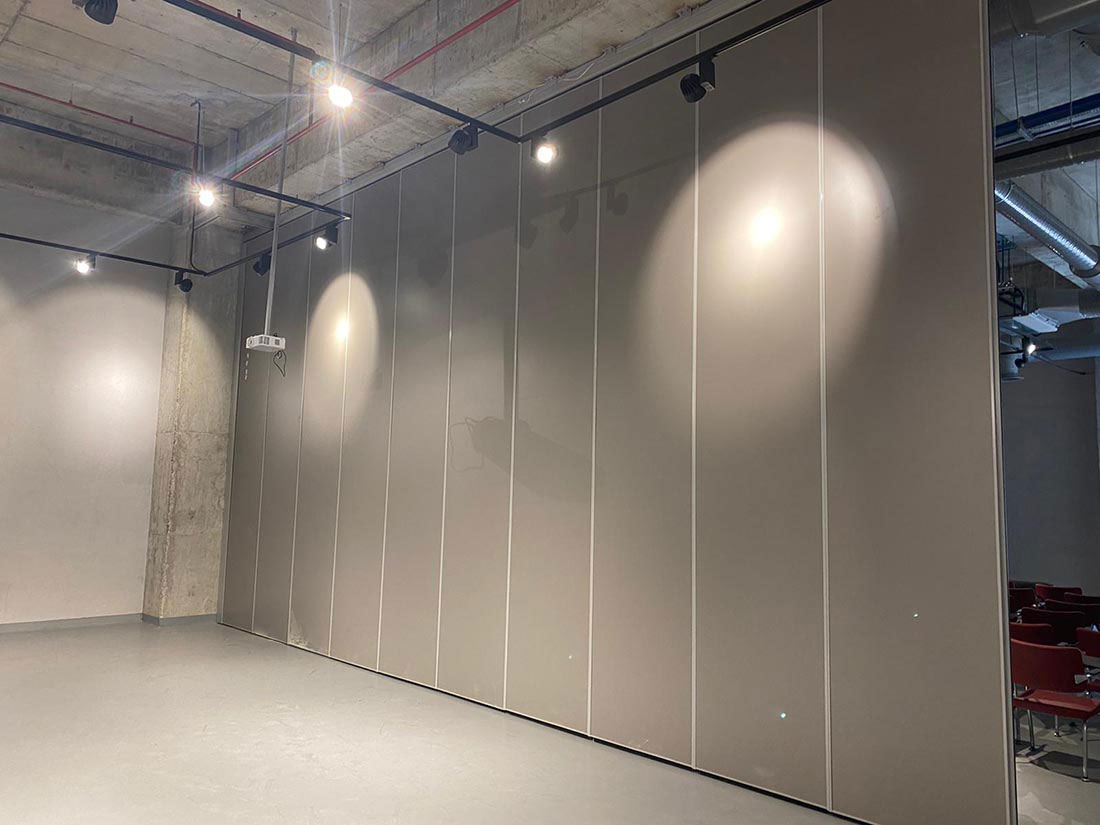

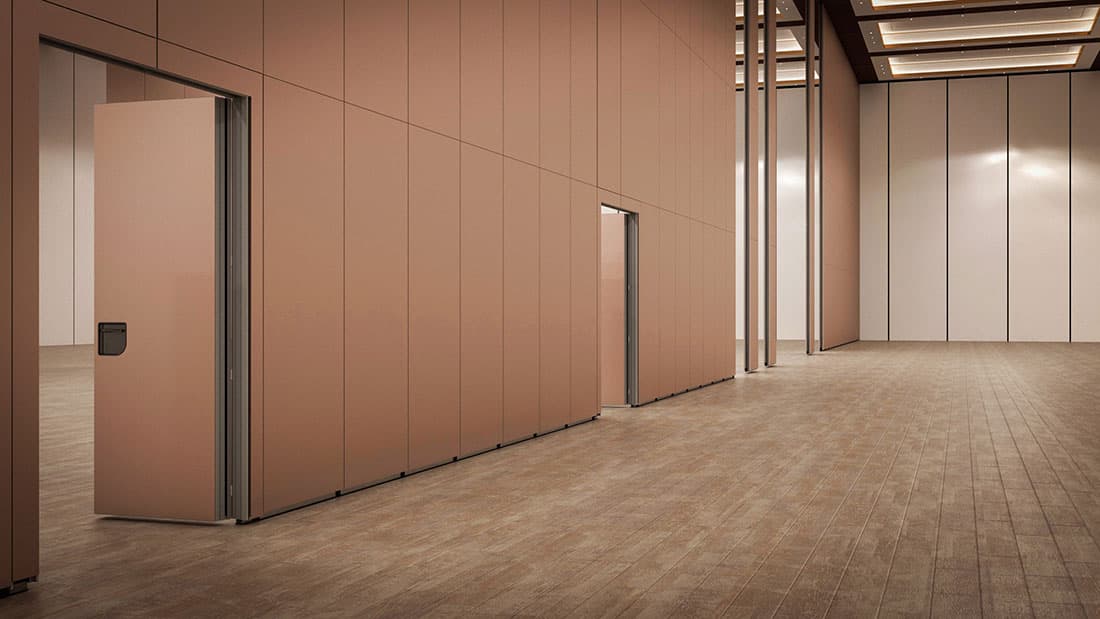

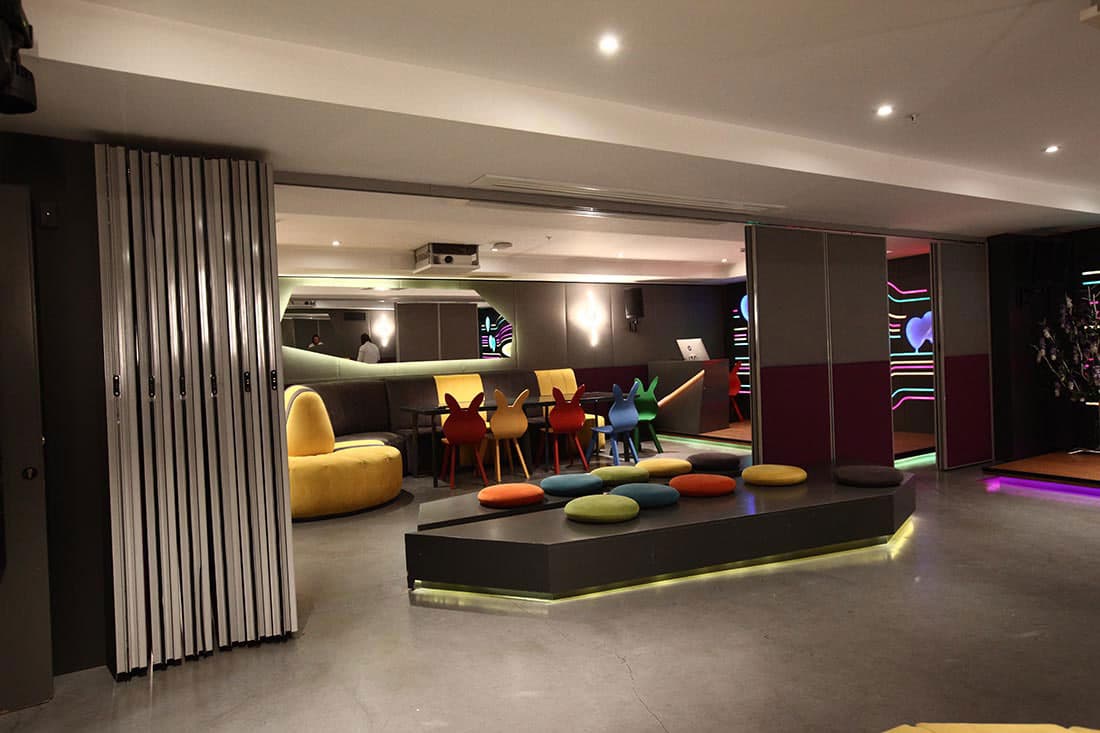

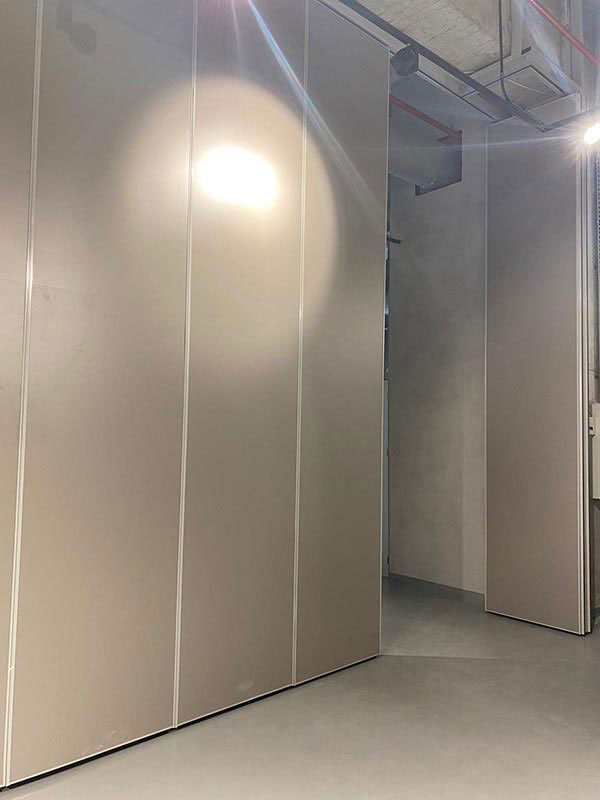

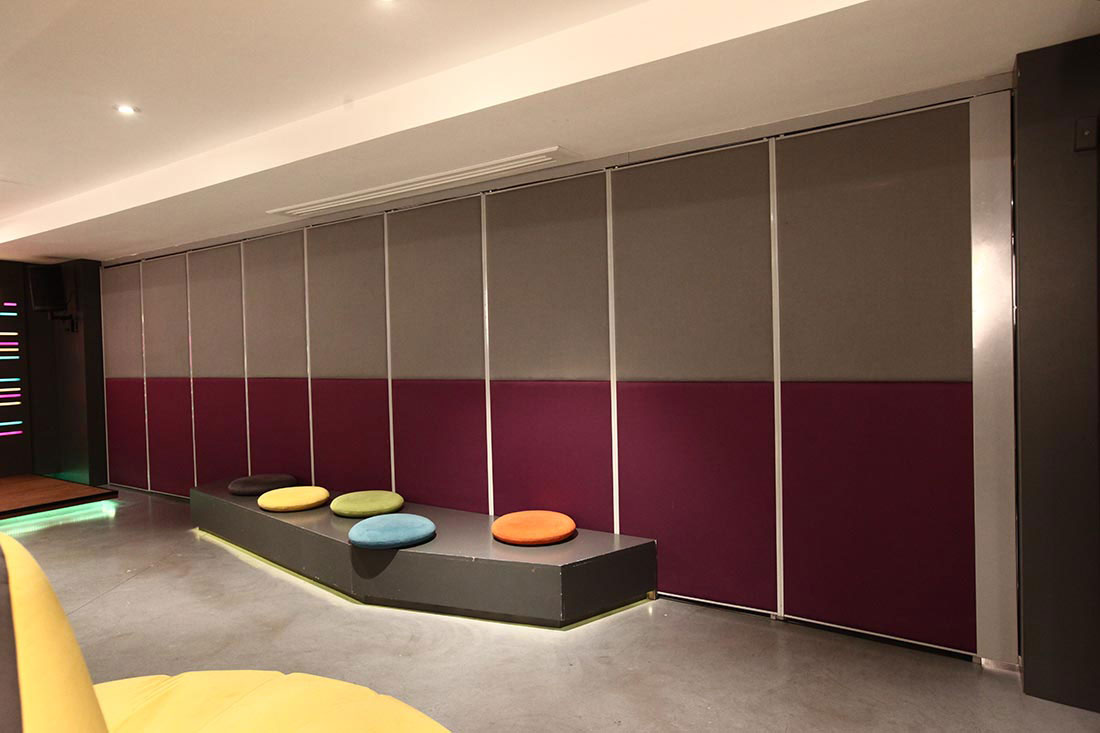

Projects

Pansmart : Aesthetics and function met with innovation and created Pansmart Electric Movable Partition Wall System. Pansmart offers you comfortable experiences.

Pansmart System Catalog

pdf iconDownload PDF
