Movable Partition Wall Technical Specifications

PANSLIDE GLASS SLIDING PARTITION WALL SYSTEM’S TECHNICAL SPECIFICATIONS

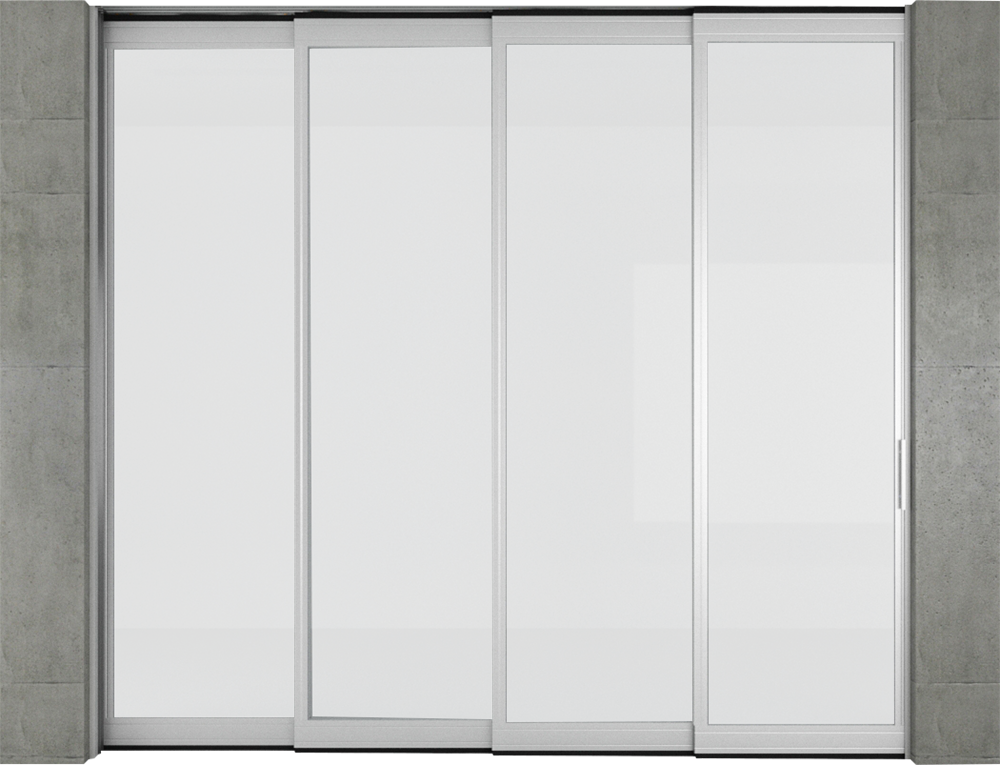

The Panslide Glass Sliding Partition Wall System is designed to withstand bending and features 40/50/60/80 mm thick aluminum frames. Within these frames, fixed modules of 6/8/10/12 mm thick tempered or laminated tempered glass are installed. The system utilizes special hanging elements and versatile rollers moving along the ceiling-mounted rail. It consists of panels that move independently of each other and can be stored discreetly.
Although each module in the glass sliding system operates independently, they interact through special mechanisms, allowing smooth movement. This user-friendly feature enhances usability.

The Panslide Glass Sliding Partition Wall System moves horizontally, functioning as a wall when needed. It facilitates the union of two spaces by opening up when necessary. The system comprises modules that create a door-like passageway by opening and closing panels at each end. Depending on the system’s length, panels can be collected unidirectionally or bidirectionally. Additionally, the system is suitable for creating independent sections in an L-shaped configuration within any space. The rail is concealed in the ceiling, and securely fixed to the supporting structure. Notably, there are no components on the floor. If desired, replicating the supporting rail system can increase the number of sliding panel modules.
When the Panslide Glass sliding partition wall system is stacked in the open position, no rails or guides are visible on the floor. To ensure strength and rigidity, telescopic guides connect each module invisibly. Furthermore, the panel width can be customized based on design, requirements, and height. Decorative foils can also be applied to the glass surface.
